System Components

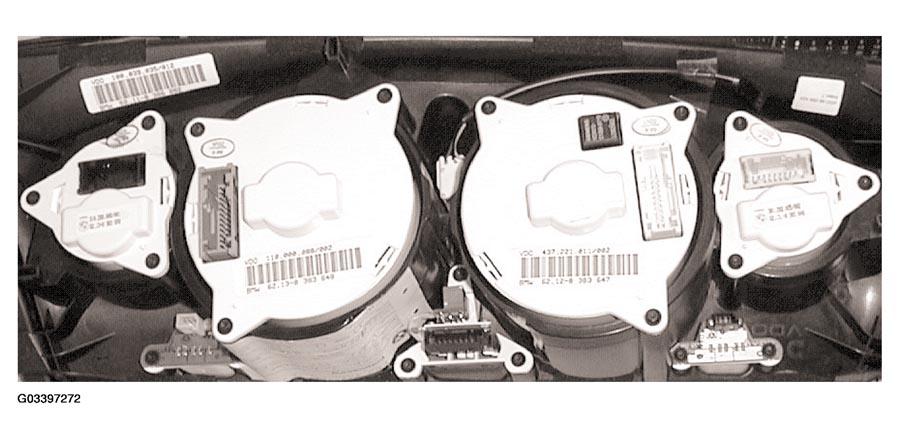

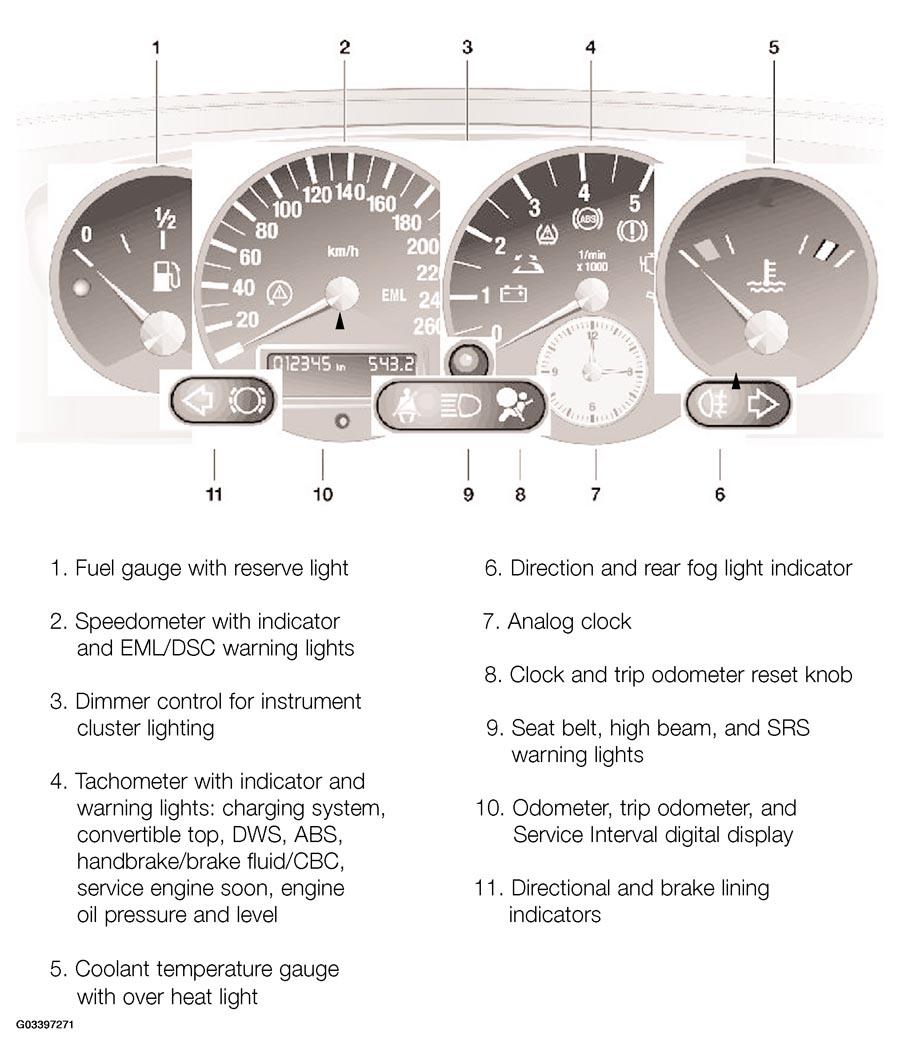

The instrument cluster is divided into module components.
- To remove the instrument cluster: carefully pry out the dash side panels (driver's and passenger's), and remove the four corner screws.

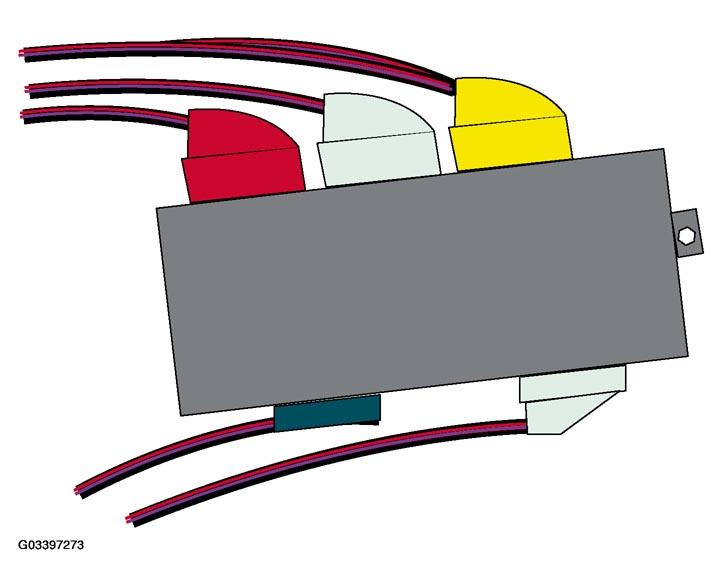

- The instrument cluster assembly is hard wired to the IKE module which is located behind the glove box.
