Wiring Diagrams

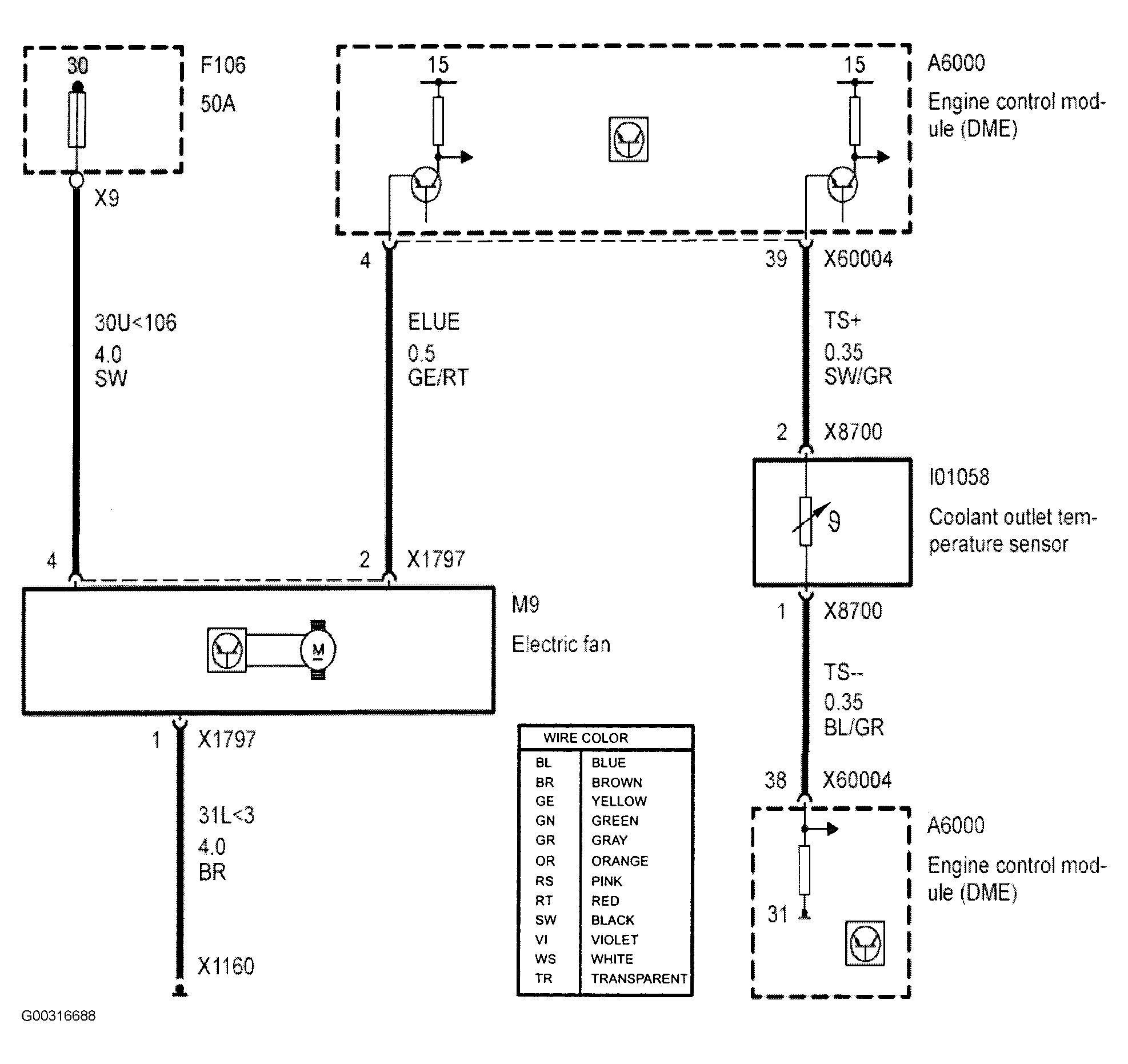

Fig 1: Electric Cooling Fan Wiring Diagram
G00316688Courtesy of BMW OF NORTH AMERICA, INC.
