12 31 ... Replacing alternator belt pulley

Special tools required:

• 12 7 110

Remove and install alternator drive belt.

Depending on alternator type, grip shaft with:

• hexagon socket
• multi-tooth socket or
• Torx socket wrench

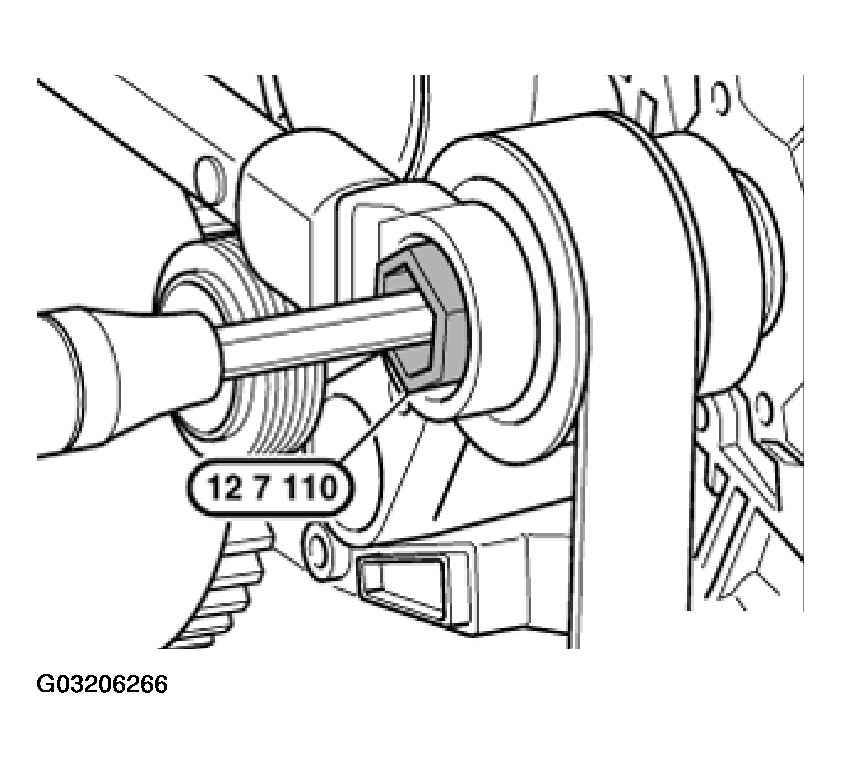

Release nut with special tool 12 7 110.

Installation:

Tightening torque, 12 31 2AZ / 12 31 3AZ. Refer to ENGINE ELECTRICAL SYSTEM - TIGHTENING TORQUES .
