12 41 041 Replacing solenoid switch

Turn off ignition.

Remove starter motor.

Release nut (1).

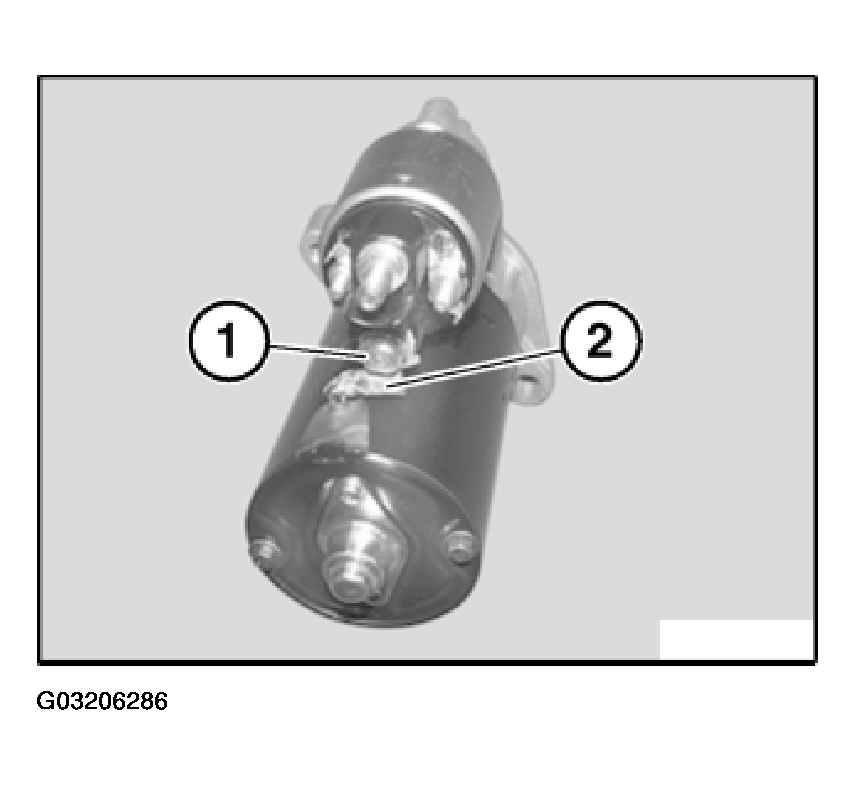

Fig 1: Locating Nut & Cable Lug

Courtesy of BMW OF NORTH AMERICA, INC.

Remove cable lug (2).

CAUTION: Do not turn cable lug (2) while tightening down - risk of short circuit to starter motor housing.

Release screws (1).

Fig 2: Releasing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Remove solenoid switch (1) and spring (2).

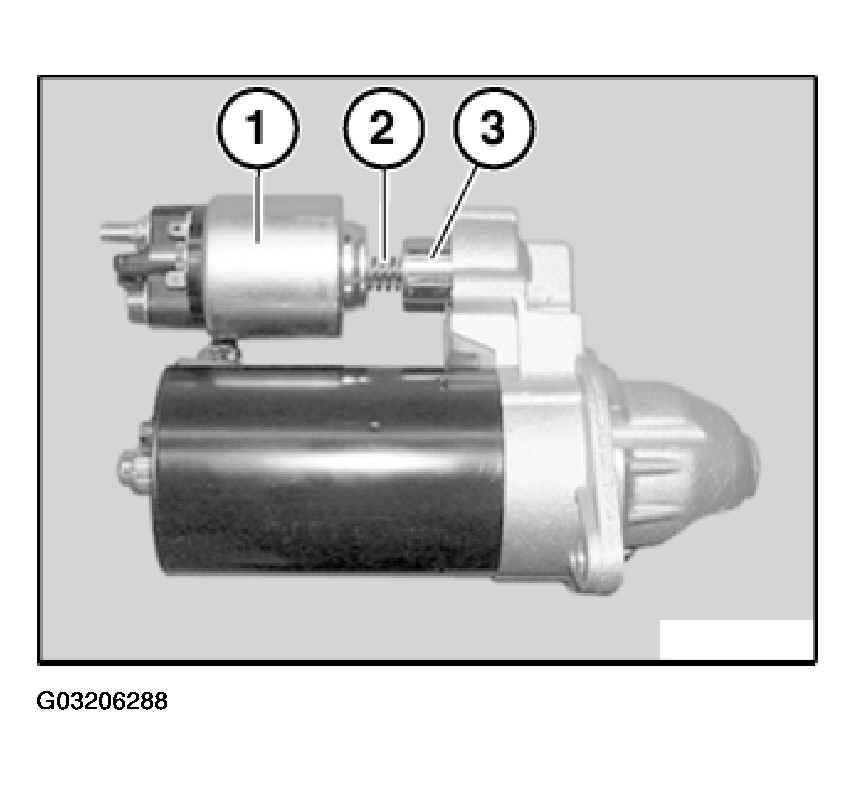

Fig 3: Removing Solenoid Switch And Spring

Courtesy of BMW OF NORTH AMERICA, INC.

Unhook pin (3).

Installation:

Check pin (3) for wear and apply grease.
