Brake Pressure Sensor

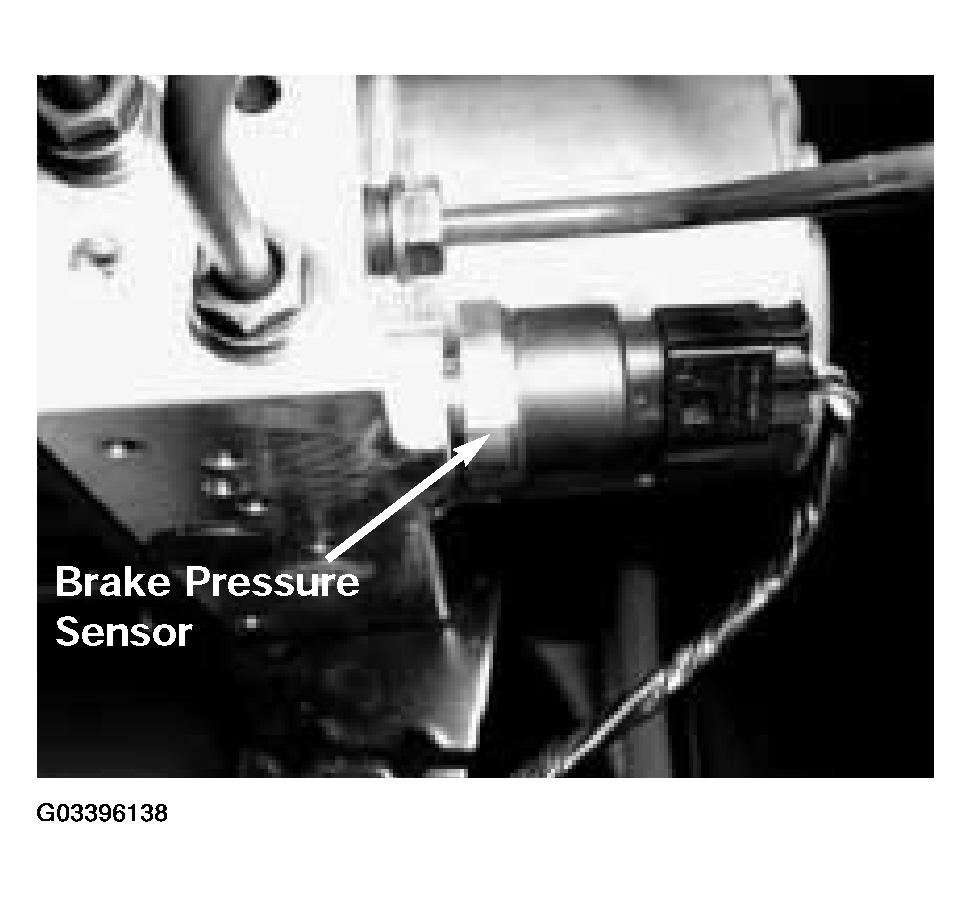

The brake pressure sensor is mounted on the DSC hydraulic unit in the front axle circuit. The sensor is provided with a 5V reference voltage by the DSC control unit.
The sensor provides the control unit with an analog signal proportional to brake pressure.
Voltage increases with increasing brake pressure.
