Body Electronics
›
General Vehicle Electrical Systems
›
System Overview
System Overview

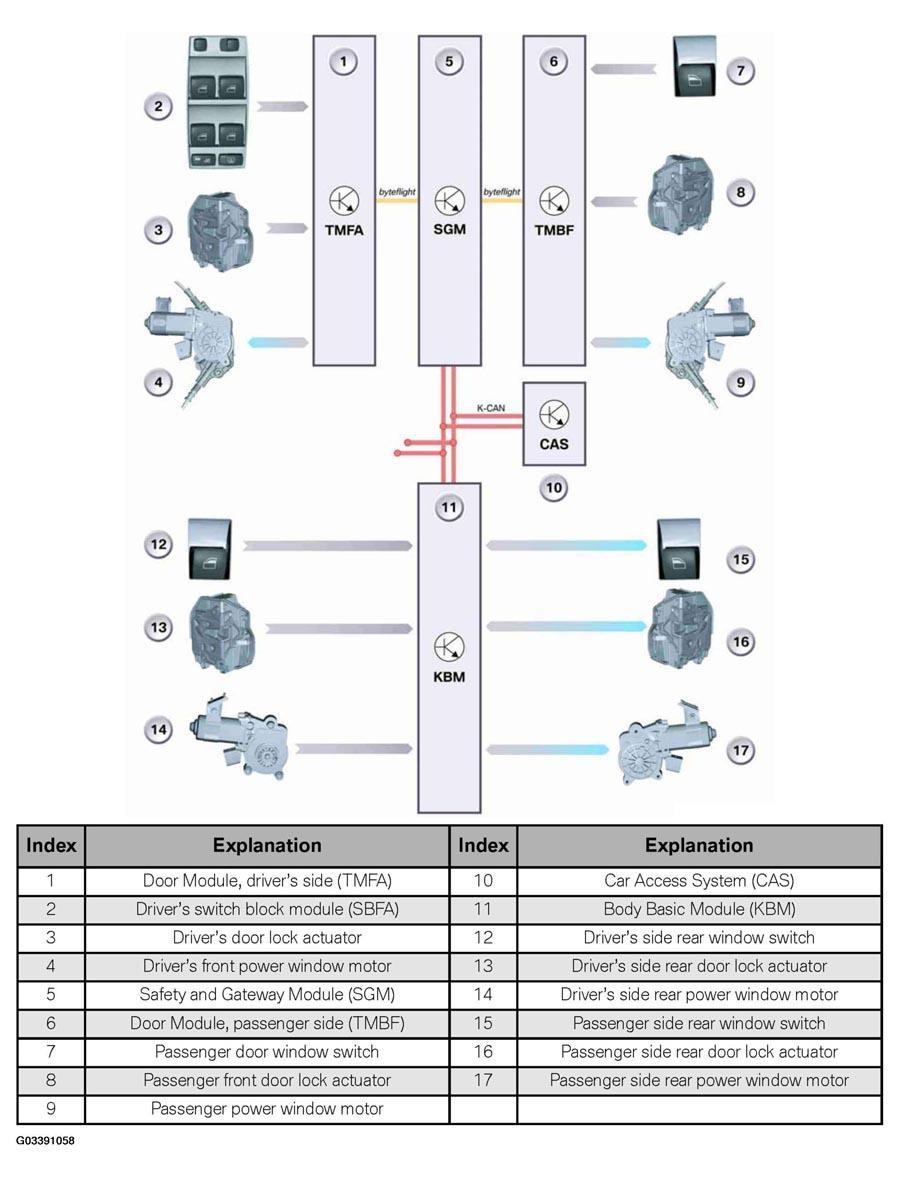

Fig 1: System Overview Schematic
Courtesy of BMW OF NORTH AMERICA, INC.
