12 31... Replacing alternator belt pulley
Remove and install alternator drive belt. See GENERATOR BELT PULLEY .
Depending on alternator type, grip shaft with:
- hexagon socket
- multi-tooth socket or
- Torx socket wrench

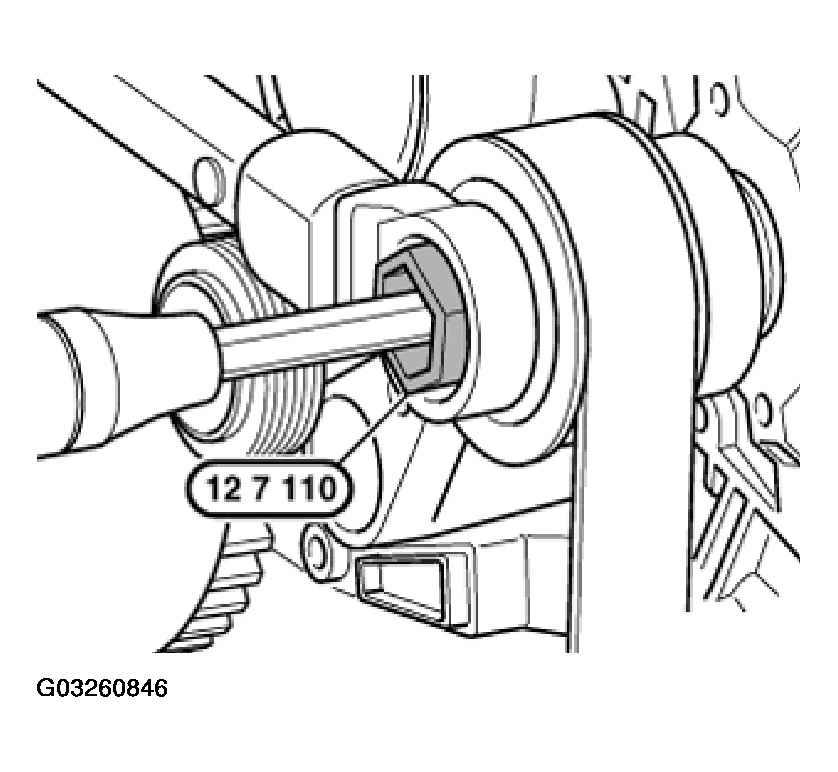

Release nut with special tool 12 7 110.
Installation:
Tightening torque, see 12 31 2AZ / 12 31 3AZ in ENGINE ELECTRICAL SYSTEM - TIGHTENING TORQUES .
