51 11 ... Overview of front bumper

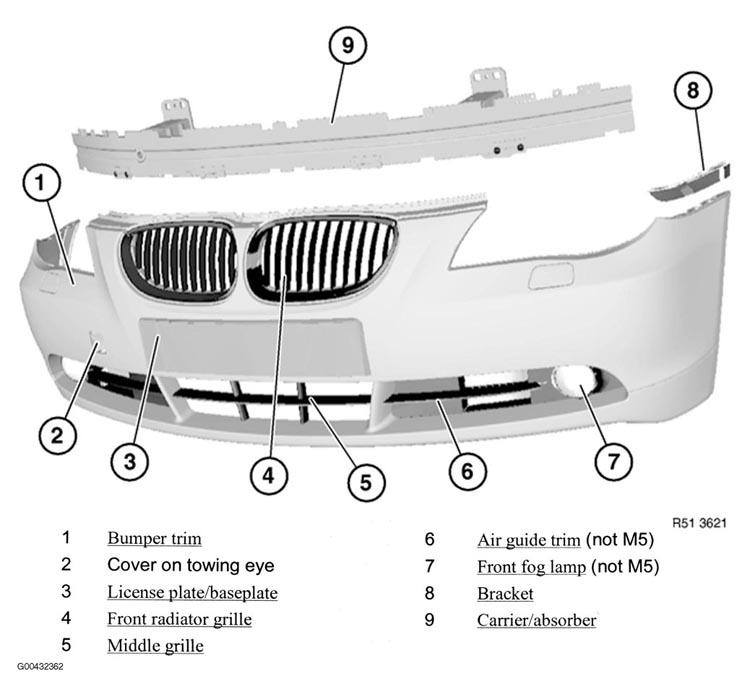

Fig 1: Overview Of Front Bumper

Courtesy of BMW OF NORTH AMERICA, INC.

Illustration created using E60 standard equipment as an example. There may be differences in detail in the case of other equipment specifications.

If equipped with M aerodynamic kit:

Remove front fog lamp trim. Refer to 51 11 ... REMOVING AND INSTALLING/REPLACING FRONT FOG LAMP TRIM (M AERODYNAMIC KIT) .
