General Electrical System - Repair
›
Switch
›
61 31 ... Overview of switches in steering wheel area
61 31 ... Overview of switches in steering wheel area

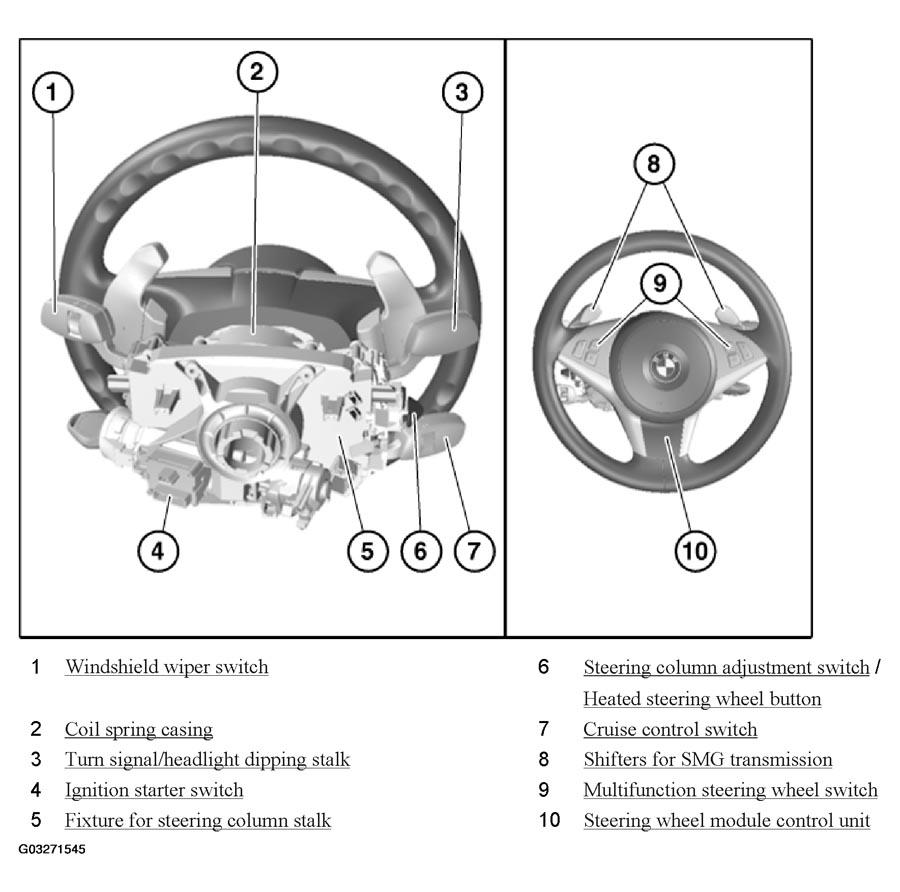

Fig 1: Identifying Switches In Steering Wheel Area
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
