Antitheft Alarm System: Notes
The alarm system detects and warns of any attempts to break in or tamper with the vehicle.

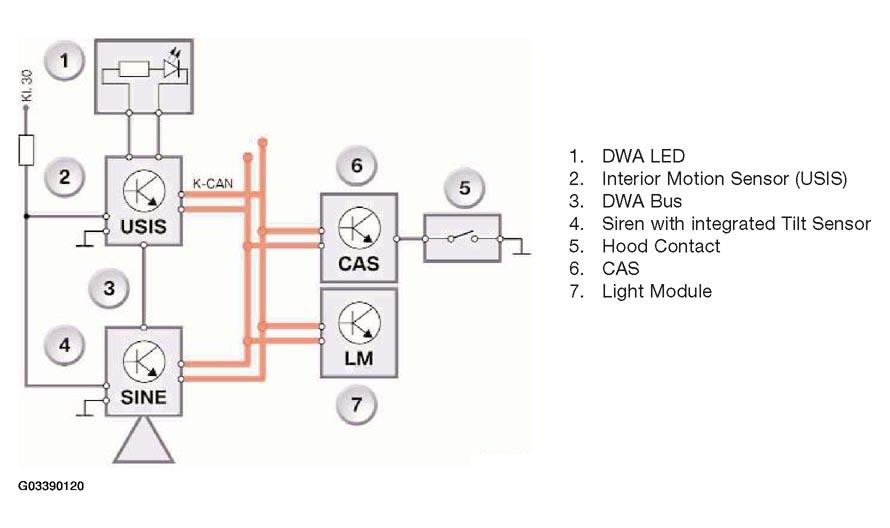

The DWA comprises the following components:
- Interior sensor with integrated DWA logic
- Emergency siren with integrated tilt sensor
- DWA LED
- Door, Trunk and Hood Switches (fed via K-CAN)
- Car Access System (CAS)
- Light module (LM)
- K-CAN
- Local DWA bus line leading to emergency siren.
