Wiring Diagrams

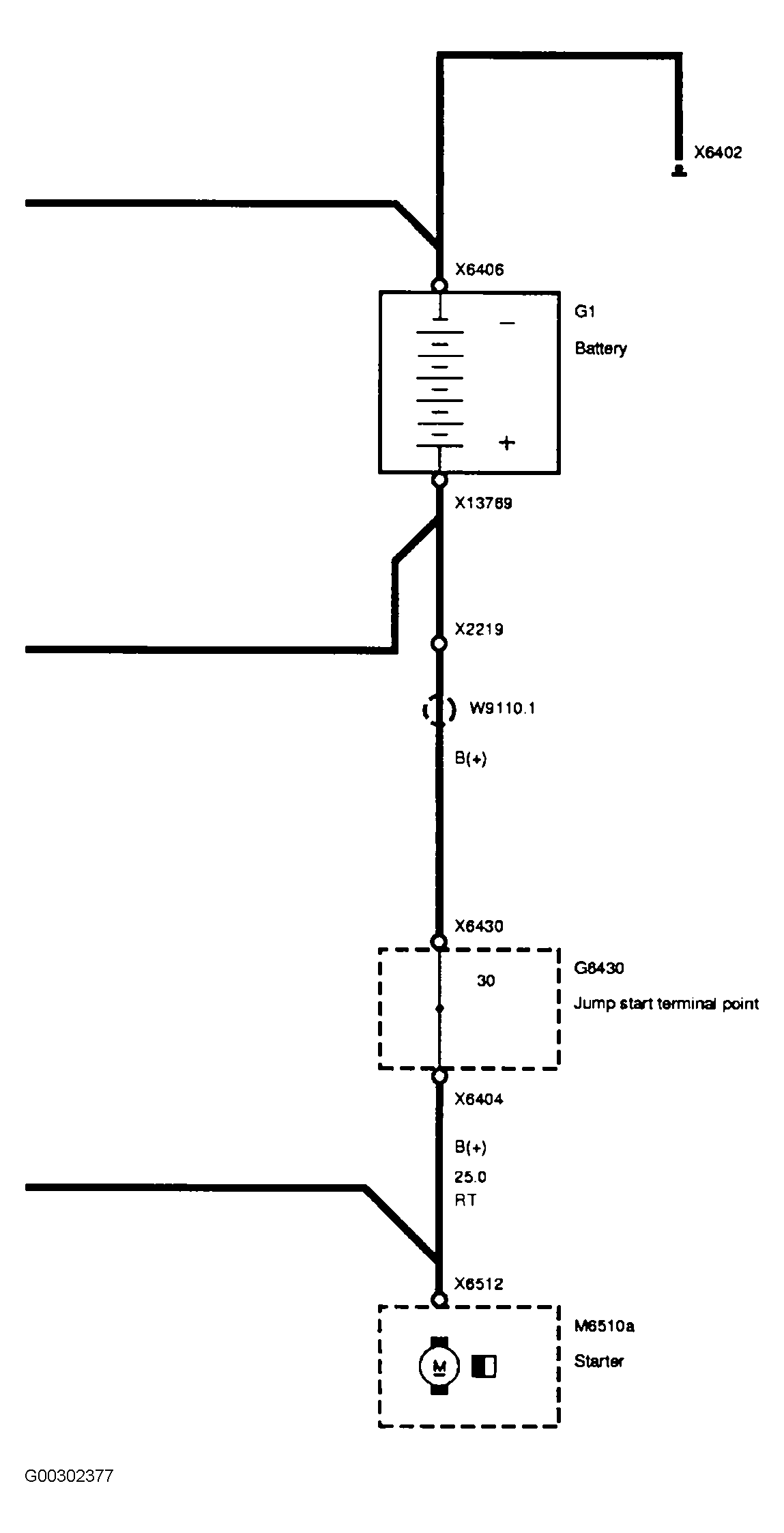

Fig 1: Wiring Diagram Charging System 545i (1 Of 2)
Courtesy of BMW OF NORTH AMERICA, INC.

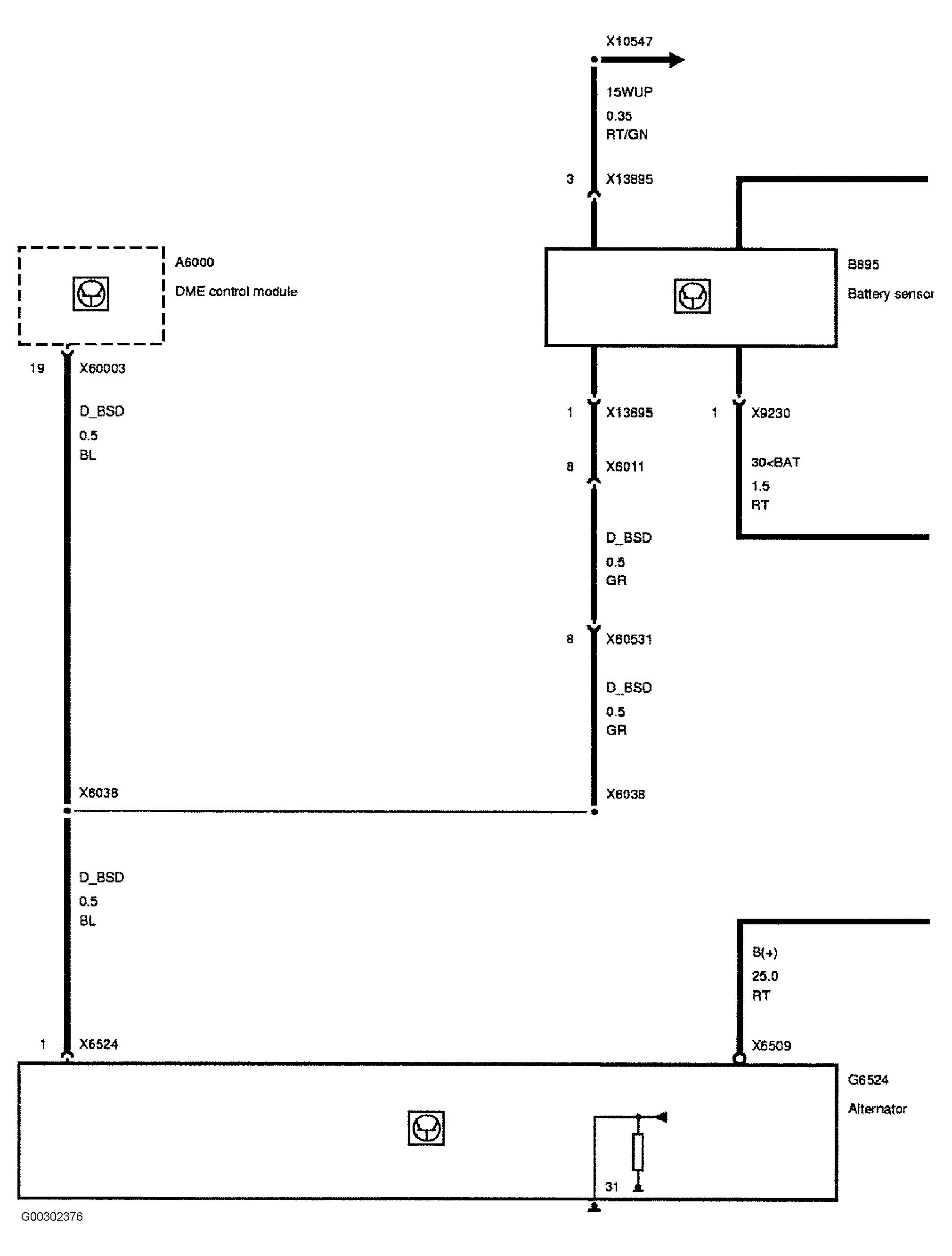

Fig 2: Wiring Diagram Charging System 545i (2 Of 2)
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
