Wheel Alignment Specifications

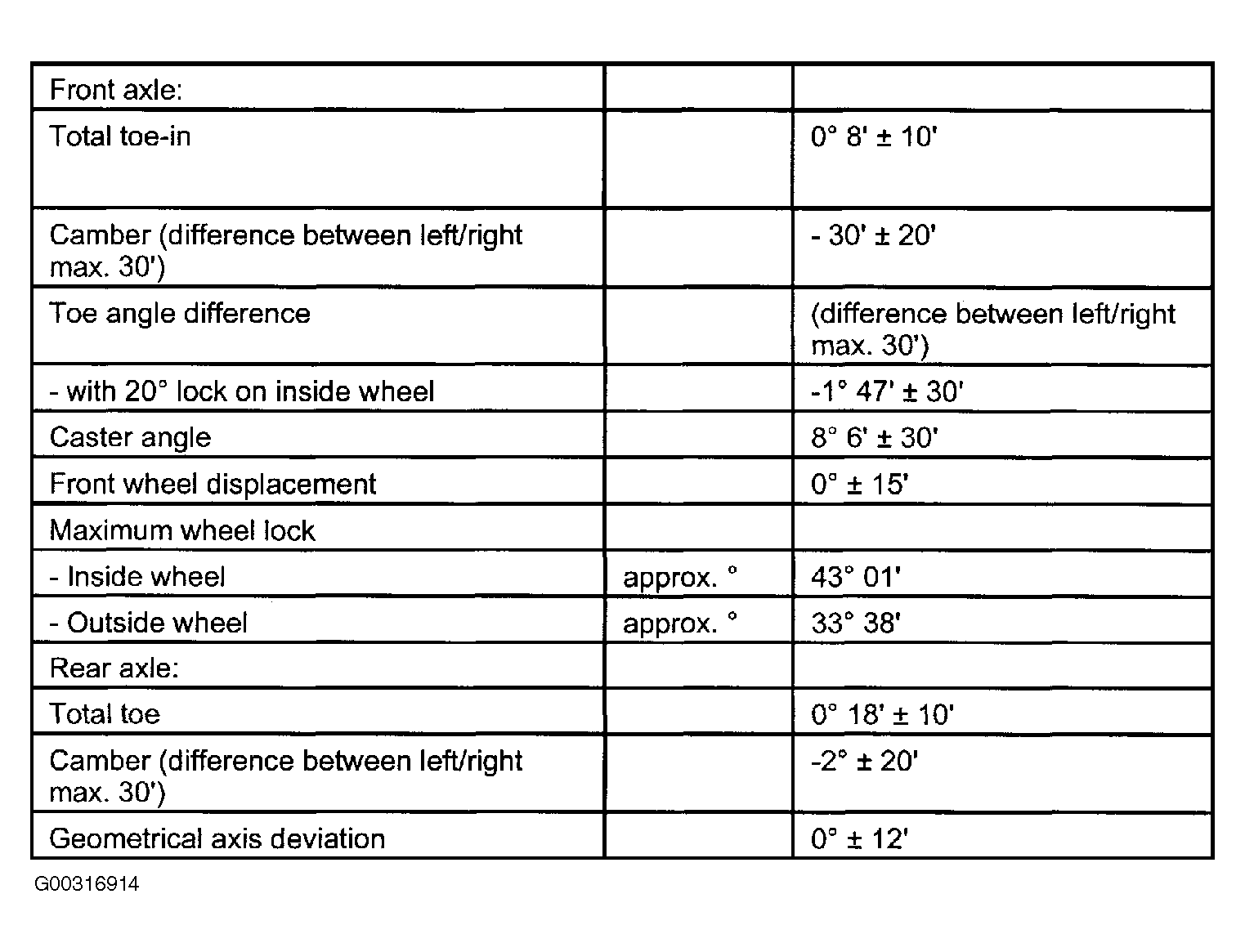

Fig 1: Wheel Alignment Specifications (Normal Suspension)

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 2: Wheel Alignment Specifications (Low Slung Sports Suspension)

Courtesy of BMW OF NORTH AMERICA, INC.

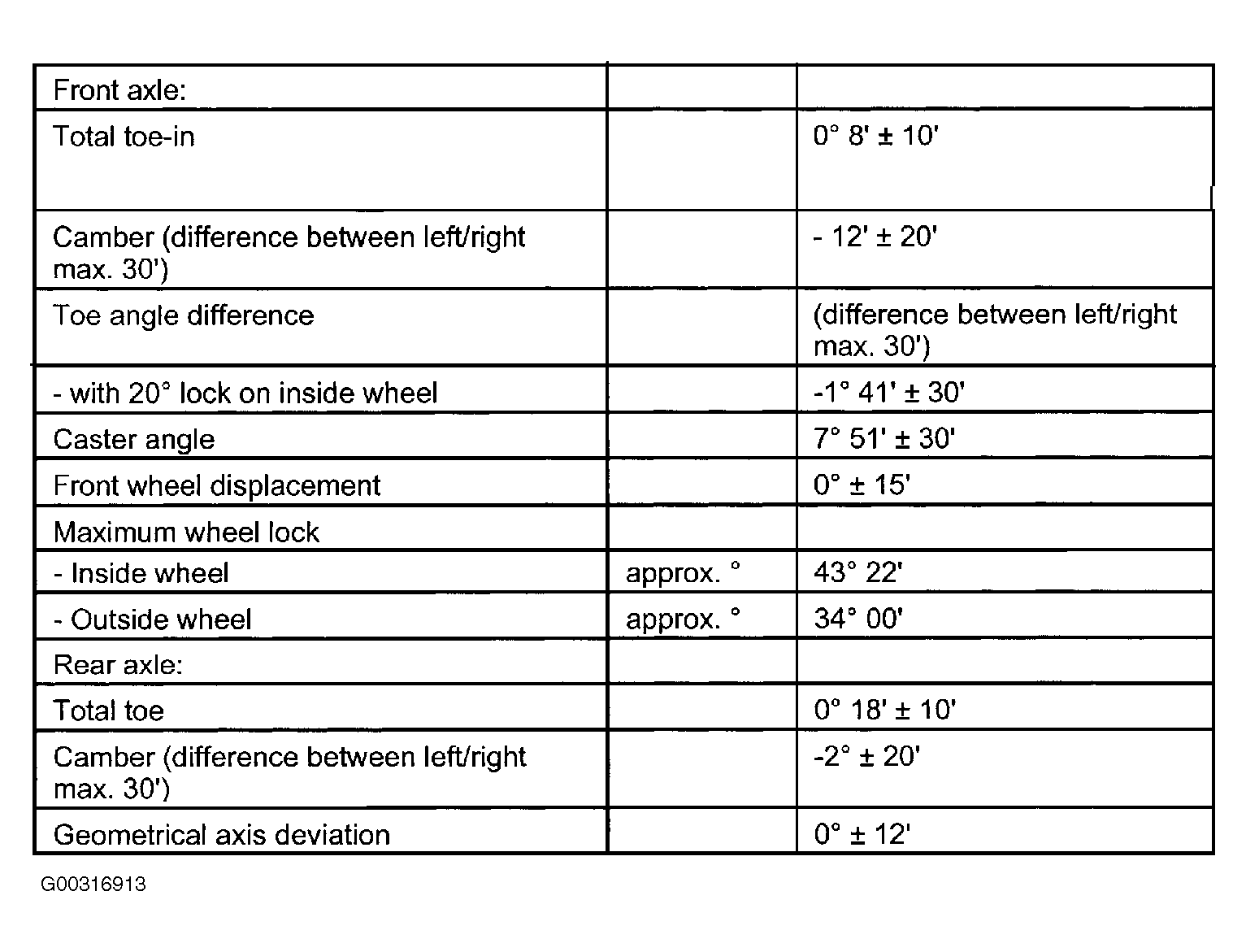

Fig 3: Wheel Alignment Specifications (Rough Road Package)

Courtesy of BMW OF NORTH AMERICA, INC.
