11 00 050 Removing and installing engine (N62)

NOTE:

For Special Tool identification, see ENGINE - SPECIAL TOOLS - 5-SERIES (E60) .

Special Tools Required:

11 0 020

Necessary Preliminary Tasks:

Disconnect battery negative lead. (Follow instructions for disconnecting and connecting battery). Refer to 12 00 ... INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY .
Lift engine hood into assembly position. Refer to 51 00 ... SERVICE POSITION OF ENGINE HOOD/BONNET .
Remove radiator design cover.
Remove air cleaner housing. Refer to 13 71 000 REMOVING AND INSTALLING/REPLACING INTAKE FILTER HOUSING .
Remove tension strut. Refer to 51 71 373 REMOVING AND INSTALLING/REPLACING TENSION STRUT ON SPRING STRUT DOME .
Remove fresh air duct. Refer to 64 31 053 REMOVING AND INSTALLING OR REPLACING FRESH AIR DUCT .
Detach steering spindle from steering gear. Refer to 32 31 070 REMOVING AND INSTALLING OR REPLACING LOWER SECTION OF STEERING SPINDLE .
Release engine wiring harness from electronics box. Refer to 12 51 001 REPLACING WIRING HARNESS SECTION FOR ENGINE (N62) .
Drain coolant. Refer to 17 00 005 DRAINING AND ADDING COOLANT (N62) .
Remove coolant expansion tank. Refer to 17 11 100 REMOVING AND INSTALLING/REPLACING COOLANT EXPANSION TANK (N62) .
Remove radiator. Refer to 17 11 000 REMOVING AND INSTALLING RADIATOR (N62) .
Remove A/C compressor drive belt. Refer to 11 28 050 REPLACING A/C COMPRESSOR DRIVE BELT (N62) .
Remove alternator drive belt. Refer to 11 28 010 REPLACING ALTERNATOR DRIVE BELT (N62/N62TU) .
Disconnect fuel line.
Remove front/middle underbody protection.
Remove reinforcement plate.
Remove all lambda oxygen sensors. Refer to 11 78 530 REPLACING LEFT OXYGEN CONTROL SENSOR (N62/N62TU) , 11 78 533 REPLACING RIGHT OXYGEN CONTROL SENSOR (N62/N62TU) , 11 78 540 REPLACING LEFT OXYGEN MONITOR SENSOR (N62/N62TU) , AND 11 78 543 REPLACING RIGHT OXYGEN MONITOR SENSOR (N62/N62TU) .
Remove exhaust system. Refer to 18 00 020 REMOVING AND INSTALLING COMPLETE EXHAUST SYSTEM (N62) .
Remove transmission. Refer to REMOVAL & INSTALLATION .

NOTE: Do not detach oil lines from automatic transmission to heat exchanger at oil sum.

IMPORTANT: Risk of damage to oil lines on steering gear.

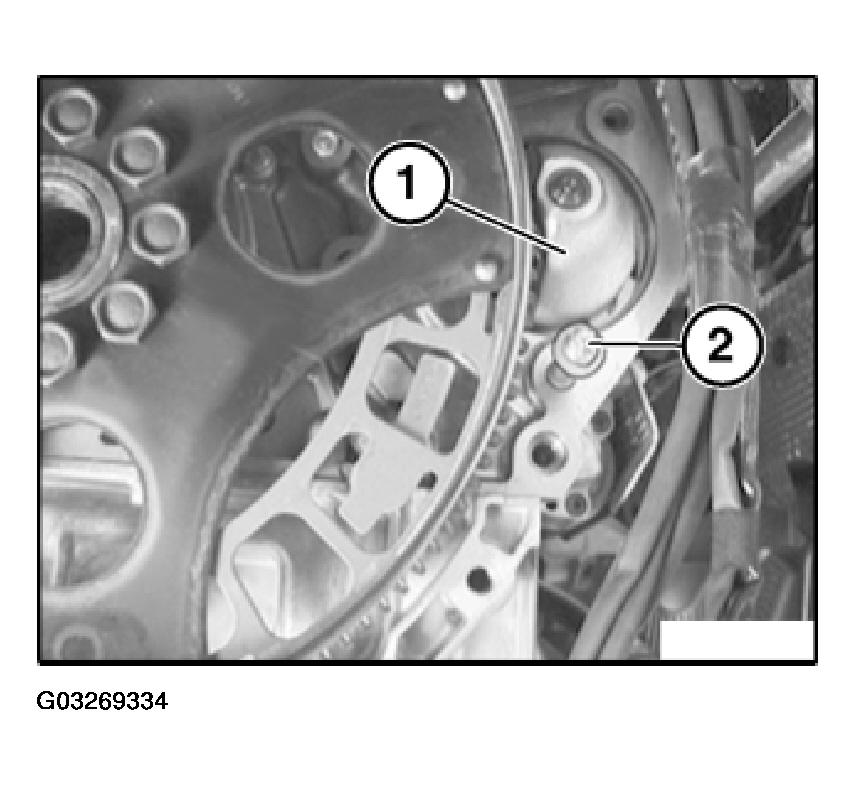

Secure starter motor (1) with transmission screw (2) against falling out.

Fig 1: Securing Starter Motor With Transmission Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Detach oil line (1) at screw connection (2).

Set oil line (1) down in engine compartment at front and secure against falling out.

Fig 2: Detaching Oil Line At Screw Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Release power steering pump (1). Refer to 32 41 033 REMOVING AND INSTALLING/REPLACING POWER STEERING PUMP FOR POWER STEERING GEAR WITH ACTIVE FRONT STEERING (N62) or 32 41 037 REMOVING AND INSTALLING/REPLACING POWER STEERING PUMP FOR POWER STEERING GEAR WITH DYNAMIC DRIVE (N62) .

Secure against falling out by applying a cable tie (2) to stabilizer bar (3).

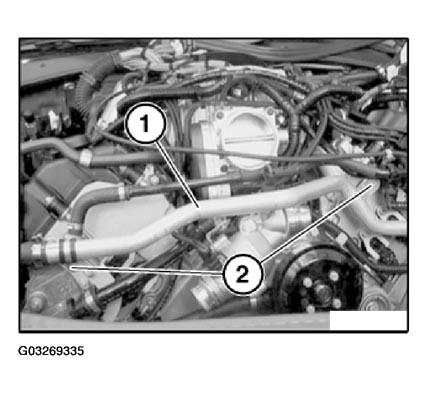

Fig 3: Identifying Power Steering Pump

Courtesy of BMW OF NORTH AMERICA, INC.

Release A/C compressor (1). Refer to 64 52 523 REPLACING COMPRESSOR FOR AIR CONDITIONER .

NOTE: Secure all connecting leads with cable ties (3) against falling down.

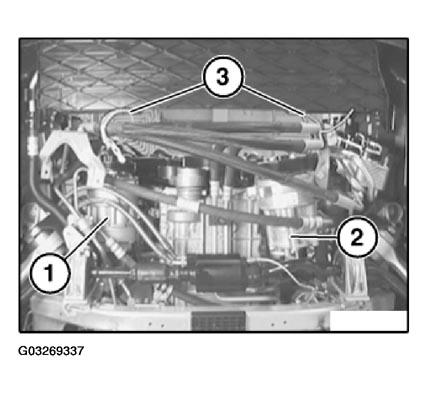

Fig 4: Securing Connecting Leads With Cable Ties

Courtesy of BMW OF NORTH AMERICA, INC.

Release and disconnect coolant hoses (1). Refer to 17 11 000 REMOVING AND INSTALLING RADIATOR (N60)

Unlock heater hose (2) and detach in direction of arrow.

Installation:

Plug-in connections of coolant hoses are correctly fitted when they snap into place with a clearly audible click.

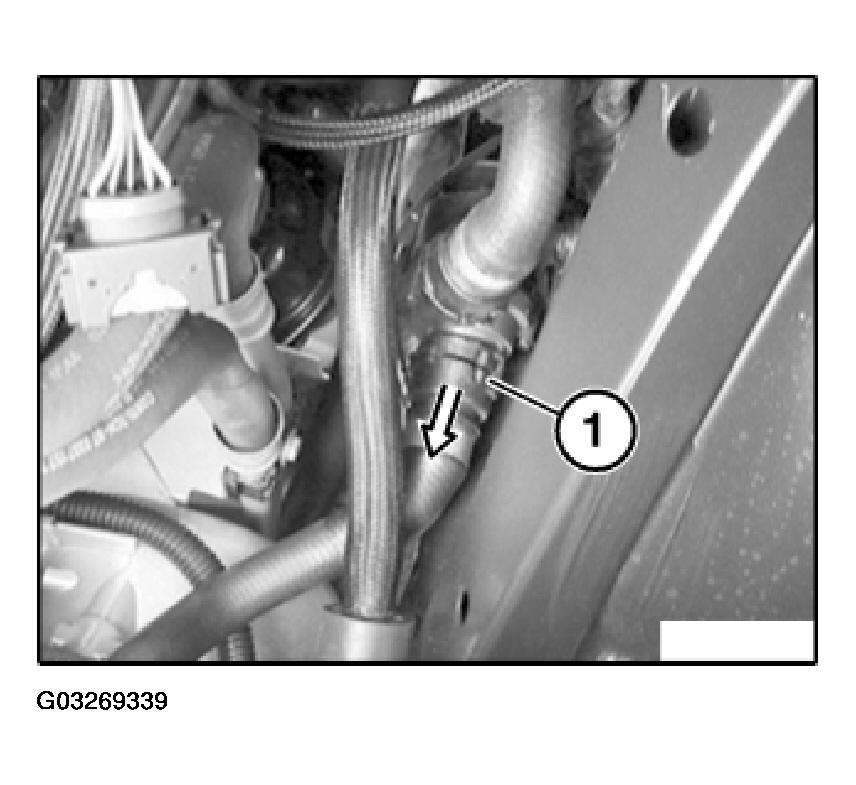

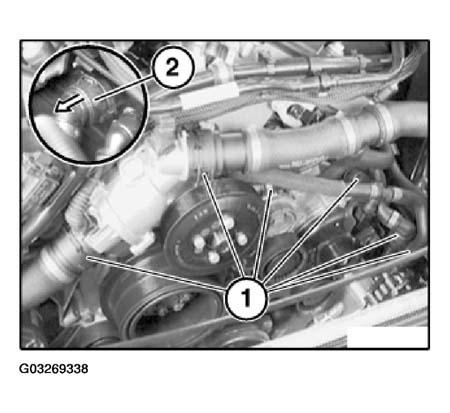

Fig 5: View Of Heater Hose

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock coolant hose (1) on auxiliary water pump and detach in direction of arrow.

Remove auxiliary water pump.

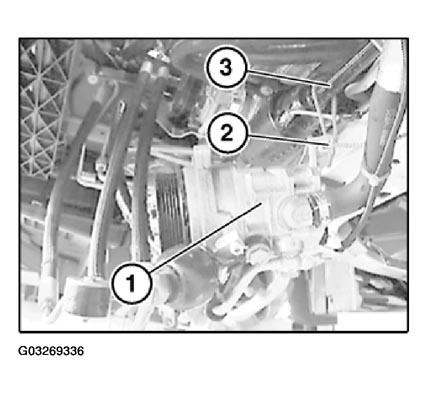

Fig 6: Locating Coolant Hose On Auxiliary Water Pump

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock hose (1) and detach from secondary air pump.

Secure automatic transmission heat exchanger (2) with cable tie (3) against falling down.

NOTE: Engine removed for purposes of clarity.

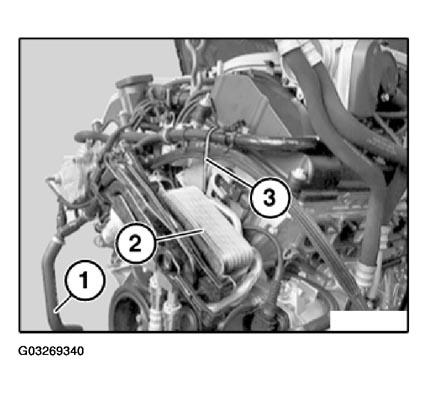

Fig 7: Identifying Hose On Secondary Air Pump

Courtesy of BMW OF NORTH AMERICA, INC.

Secure engine wiring harness (2) with cable tie (3) on suction bridge against falling out.

Mount special tool 11 0 020 on engine.

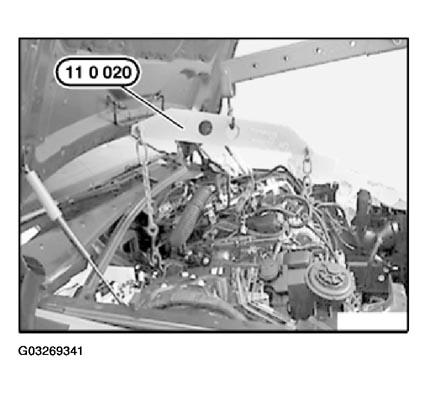

Fig 8: View Of Special Tool 11 0 020 On Engine

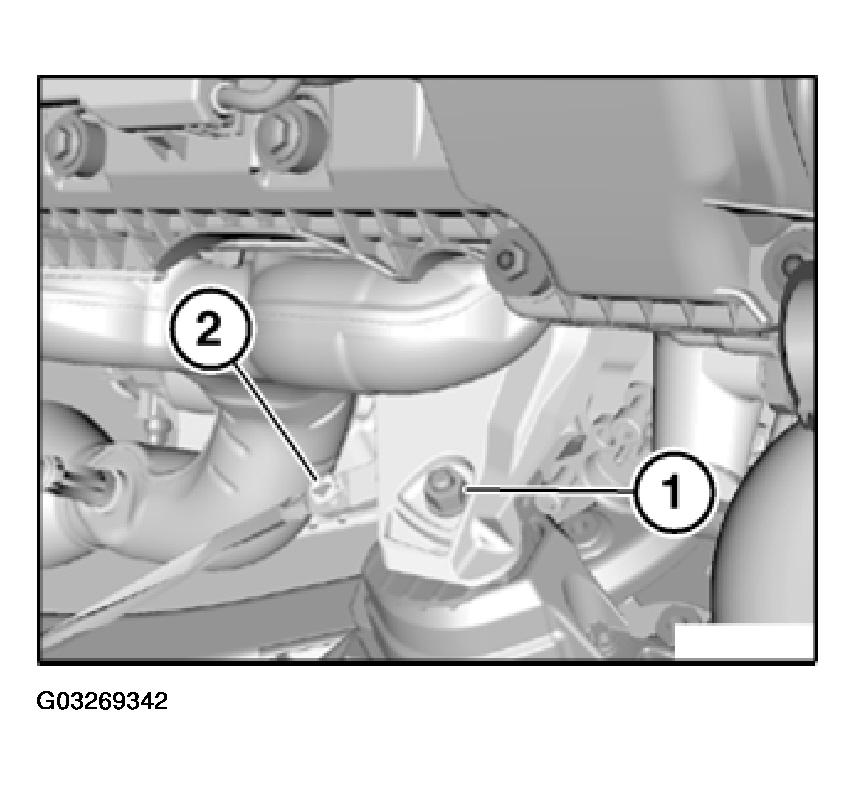

Courtesy of BMW OF NORTH AMERICA, INC.

Release nut (1) on left and right engine brackets.

Unfasten ground strap (2).

Remove engine.

Fig 9: Locating Engine Bracket Retaining Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Vent cooling system and check for leaks. Refer to 17 00 039 VENTING COOLING SYSTEM AND CHECKING FOR LEAKS (N62, N62TU) .

Installation:

Risk of damage to automatic fluid lines and servo fluid lines.
