Securing engine in installation position with special tool (N62)
NOTE:
For Special Tool identification, see ENGINE - SPECIAL TOOLS - 5-SERIES (E60) , MAINTENANCE & GENERAL INFORMATION - SPECIAL TOOLS - 5-SERIES (E60) and BODY EQUIPMENT - SPECIAL TOOLS - 5-SERIES (E60) .
Special Tools Required:
- 00 0 200
- 00 0 201
- 00 0 202
- 00 0 203
- 00 0 204
- 00 0 208
- 11 0 020
- 51 2 180
Remove acoustic cover.
Using special tool 51 2 180, secure engine hood in service position. Refer to 51 00 ... SERVICE POSITION OF ENGINE HOOD/BONNET .

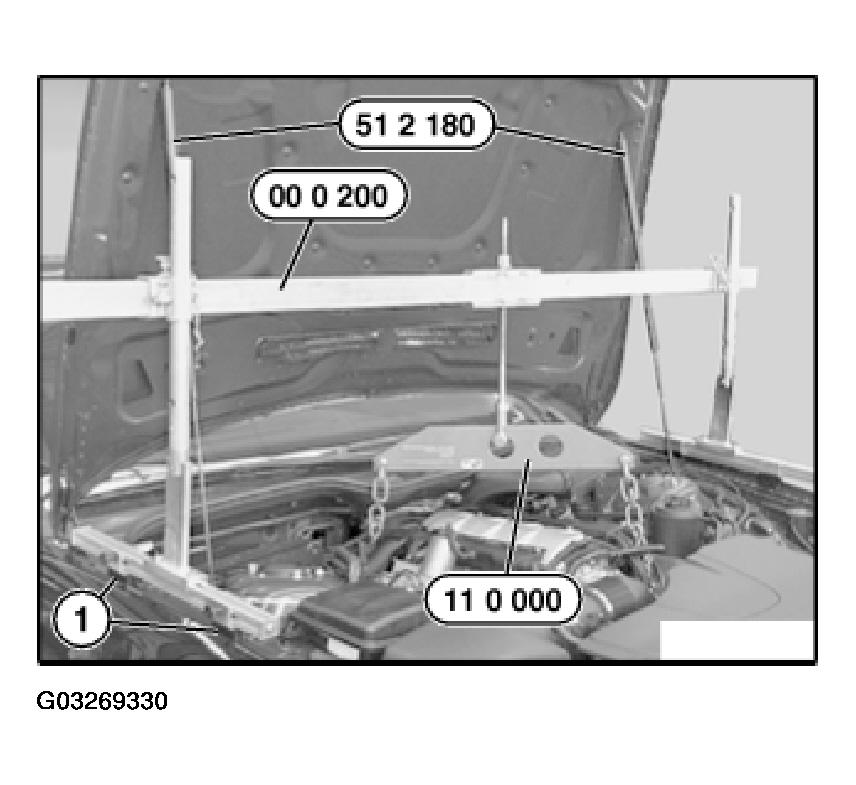

Assemble special tool 00 0 200 with special tools 00 0 201 / 00 0 202 / 00 0 203 / 00 0 204 / 00 0 208 and fit.
Secure special tool 11 0 020 to front and rear lifting eyes and to special tool 00 0 200.
NOTE:

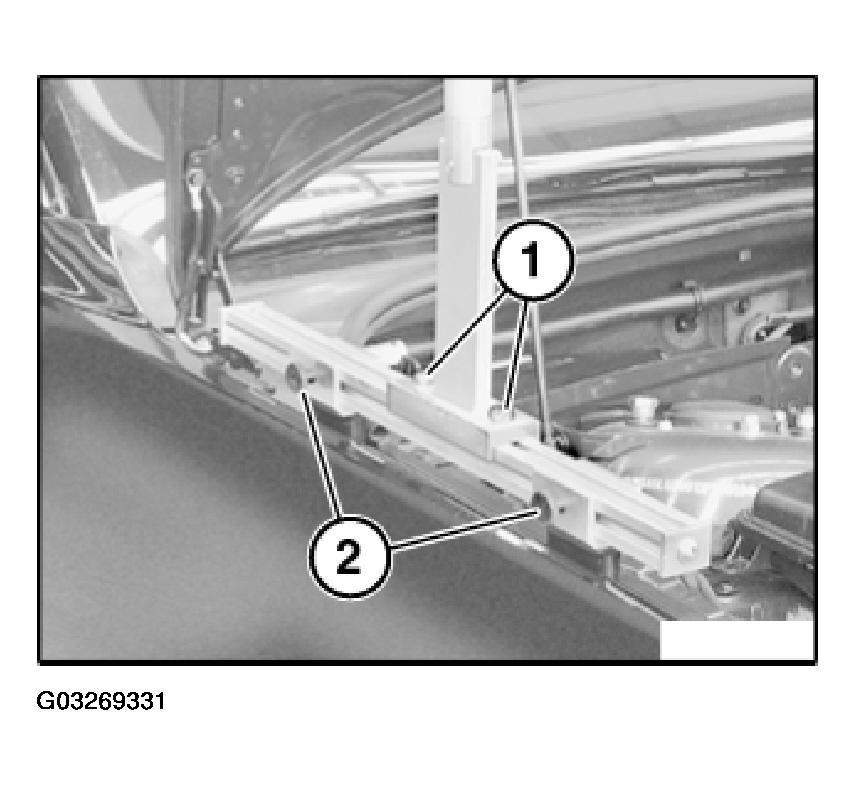

The supports (1) of special tool 00 0 208 must rest on the bolt connection of both side walls.
Tighten the screws (1 and 2).
Release engine mounts at top left and right.

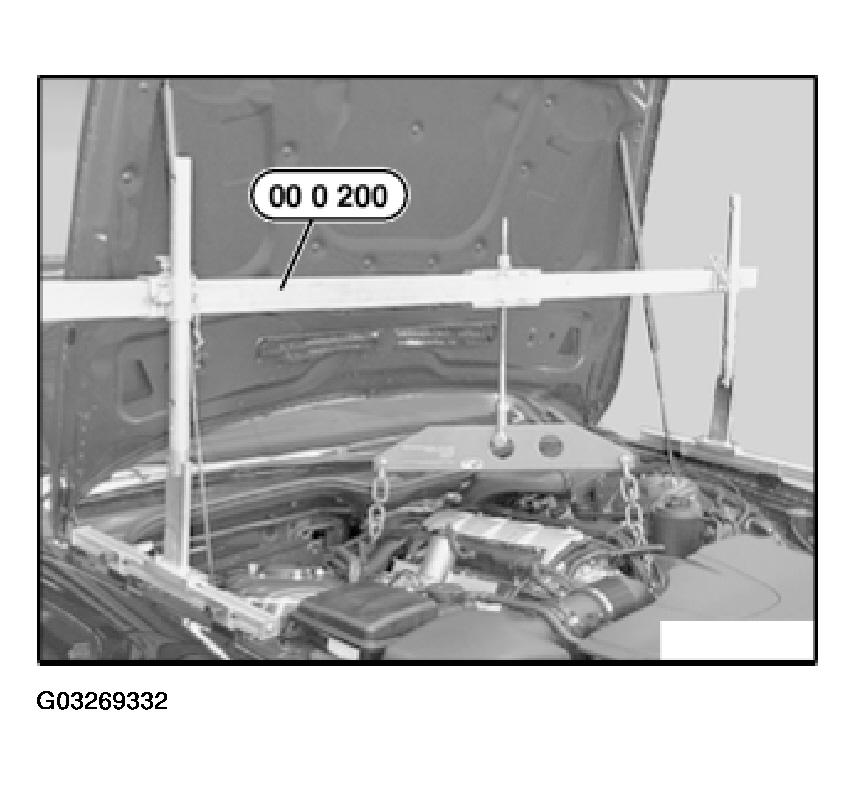

Raise engine with special tool 00 0 200 approx. 10 mm.
