Monitoring Structure of Secondary Air System Monitoring
Monitoring Structure of Secondary Air System Monitoring

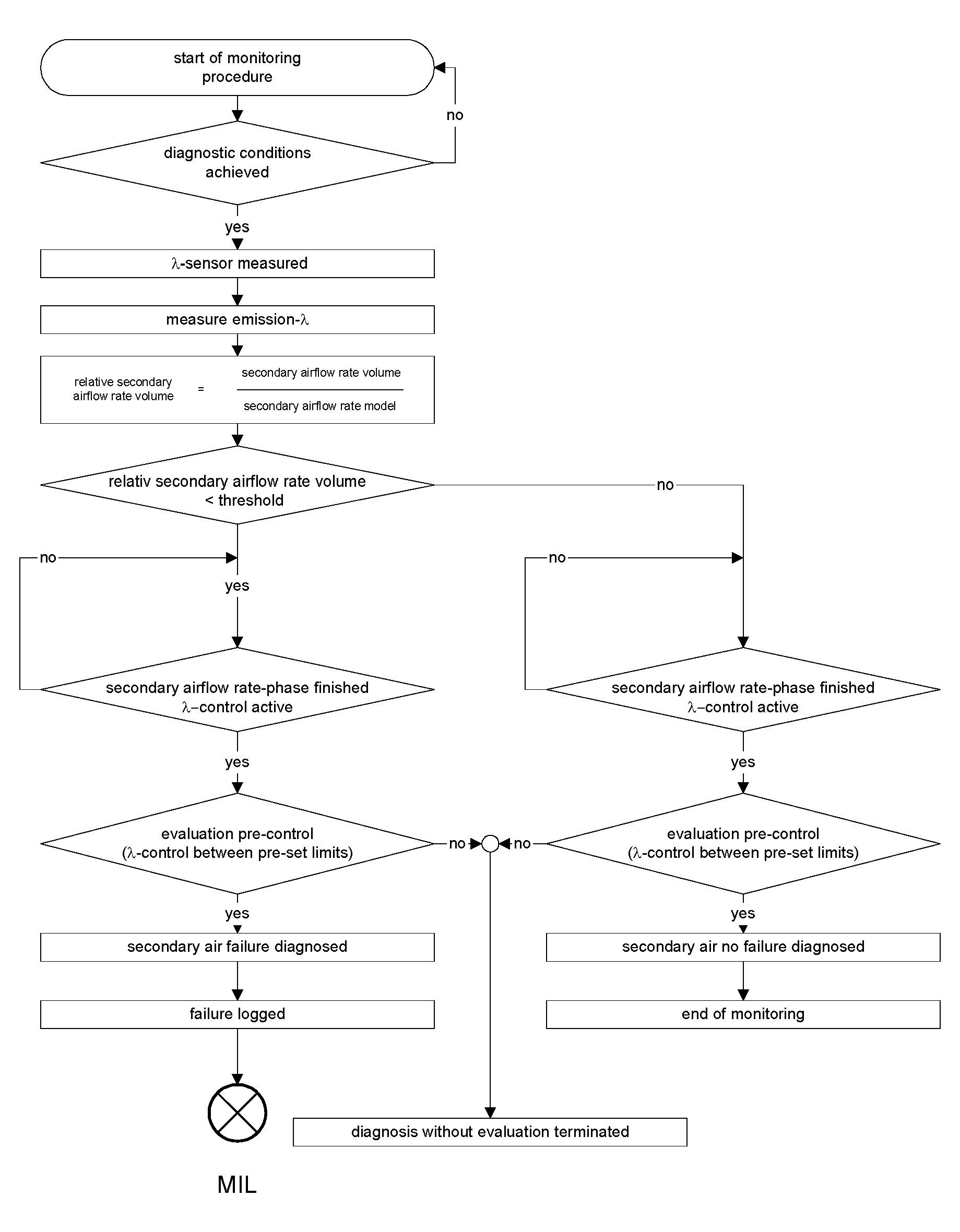

Fig 1: Secondary Air System Monitoring - Flow Chart
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
