Seatbelt Upper Anchor Position

Using new simulation methods with regard to installation and ergonomics, it was determined that there is an optimal area for all occupants to locate the seatbelt upper anchor.

The anchor point is no longer adjusted automatically based on seat movement as the system on the previous model. In addition the fitting is now designed as a roller. The low friction power (drag) of the seatbelt increases wearing comfort.

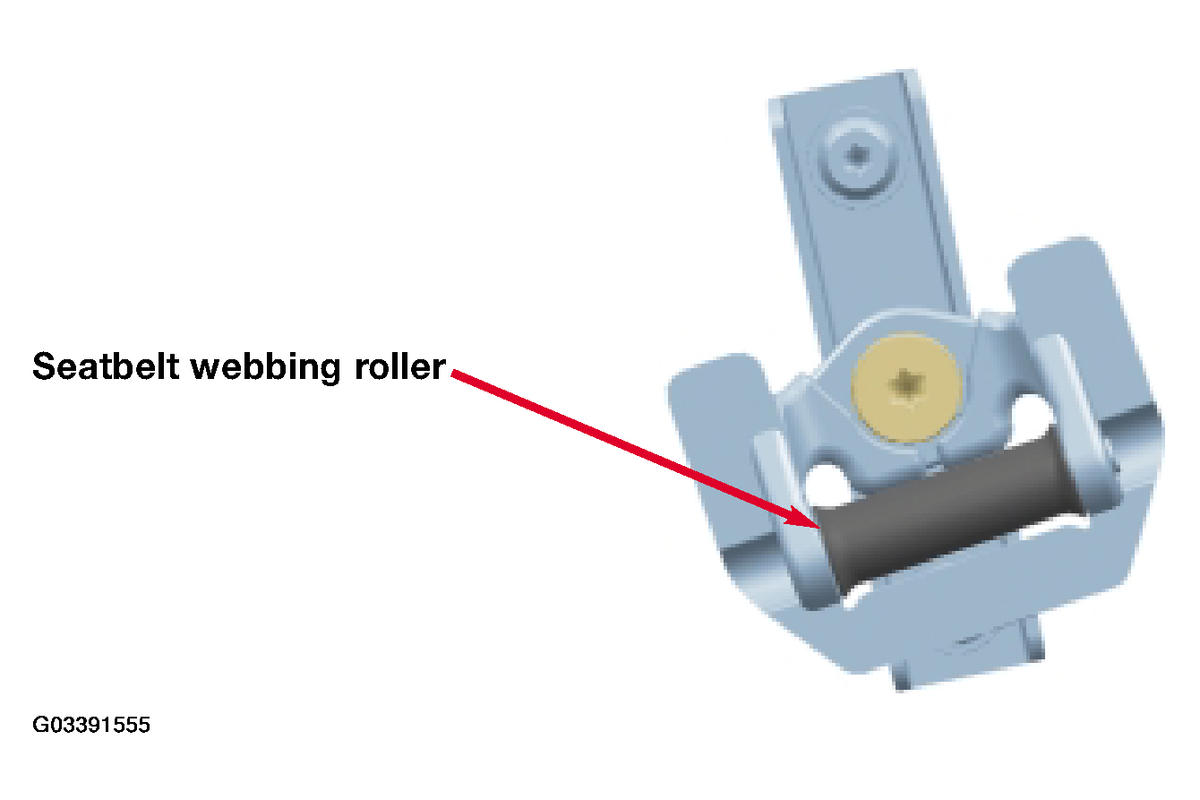

Fig 1: Identifying Seatbelt Webbing Roller
G03391555Courtesy of BMW OF NORTH AMERICA, INC.
