Diagnostic Trouble Codes With Test Charts (V12)
›
Test Group Identification
›
Catalyst Monitoring
›
Block Diagram Of System Operation
Block Diagram Of System Operation

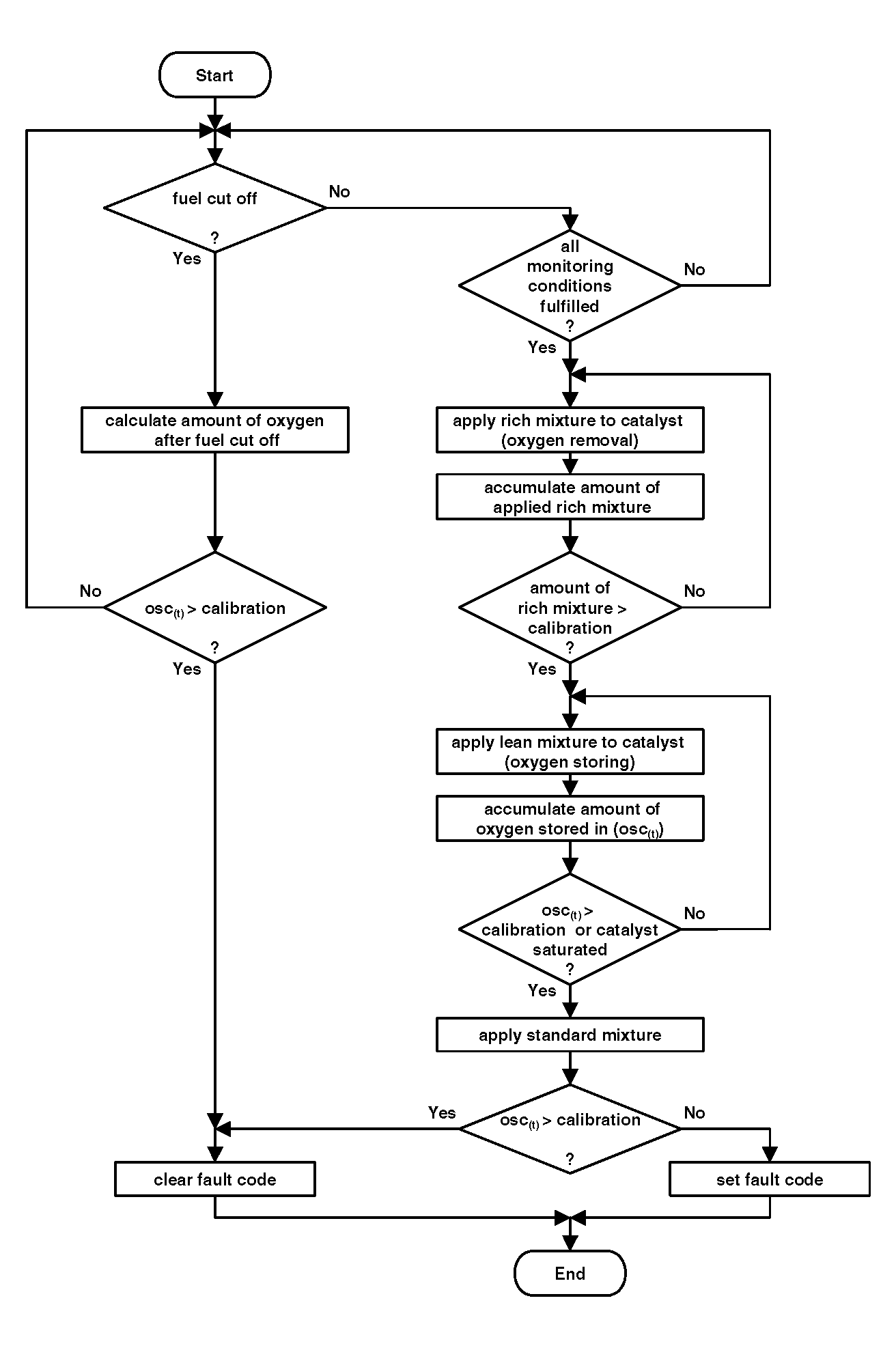

Fig 1: Block Diagram Of OBD System Operation
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
