Diagnostic Trouble Codes With Test Charts (V12)
›
Test Group Identification
›
Fuel System Monitoring
›
Flow Chart Of Fuel System Monitoring Function
Flow Chart Of Fuel System Monitoring Function

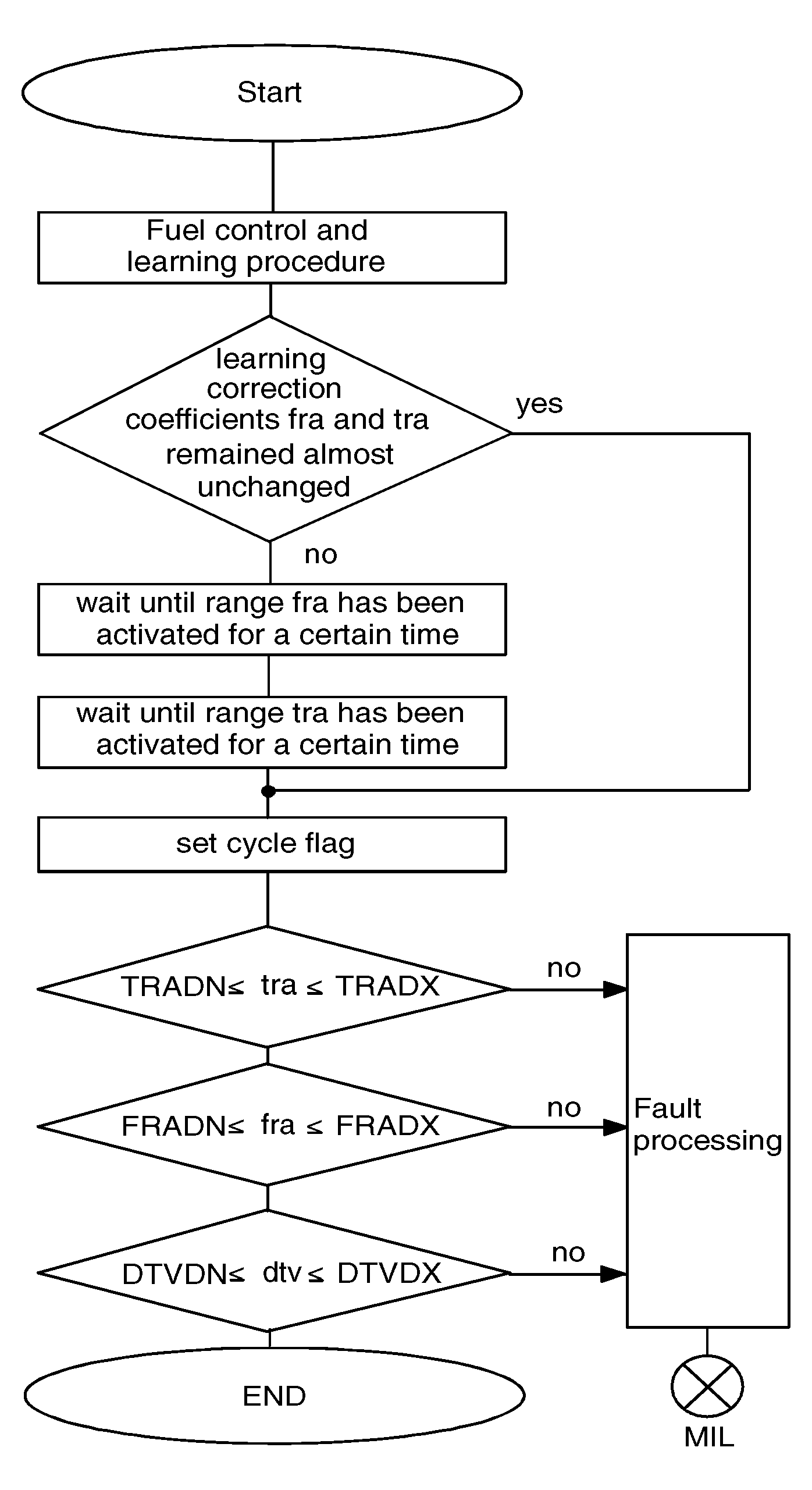

Fig 1: Flow Chart Of Fuel System Monitoring Function
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
