Power Supply: Pt-Can
- What are the circuit descriptions of the three wires that make up the PT-CAN bus?
____________________________________________________________________________

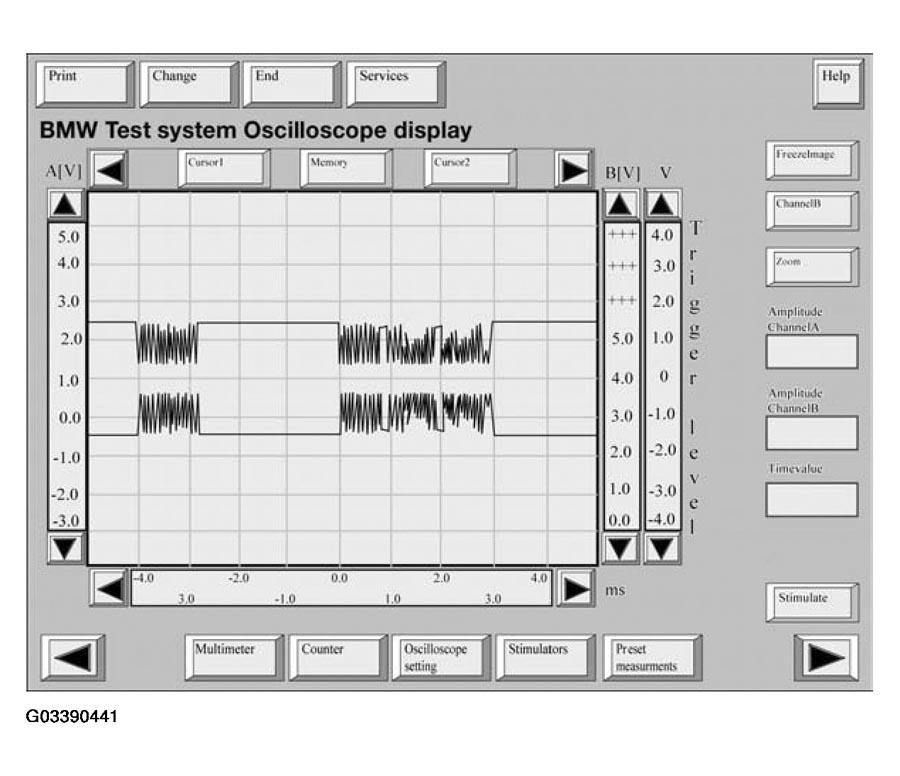

- Record the voltage levels on the PT-CAN bus (high and low) using the DISplus scope as shown - when the bus is:
Inactive - high __________ low _____________ Active - high _____________ low ____________
Notes on setup: ________________________
