Diagnostic Trouble Codes With Test Charts
›
Test Group Identification
›
Catalyst Monitoring
›
Monitoring structure of Catalyst
Monitoring structure of Catalyst

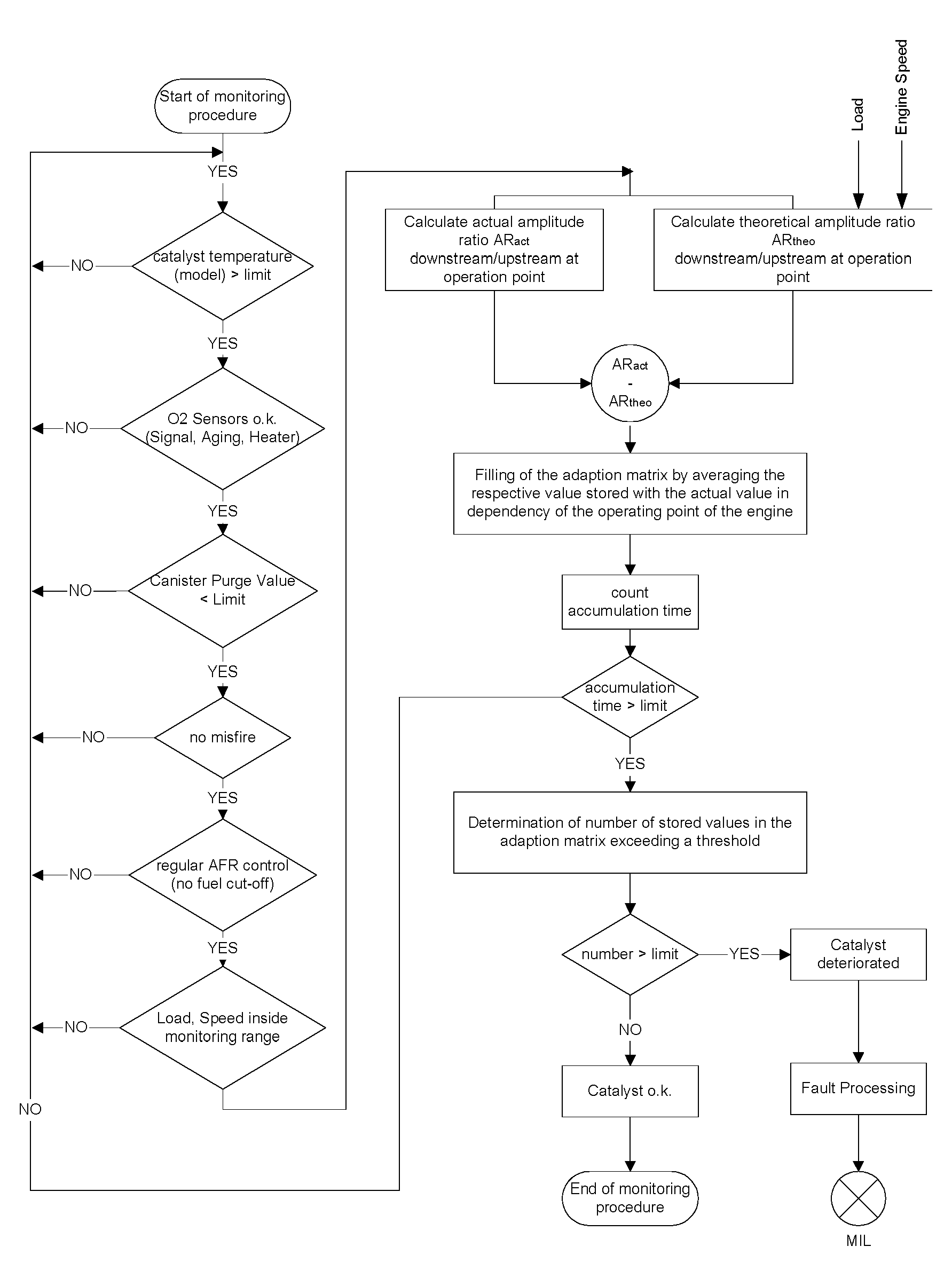

Fig 1: Catalyst Monitoring Flow Chart
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
