Mechatronics Module: Construction

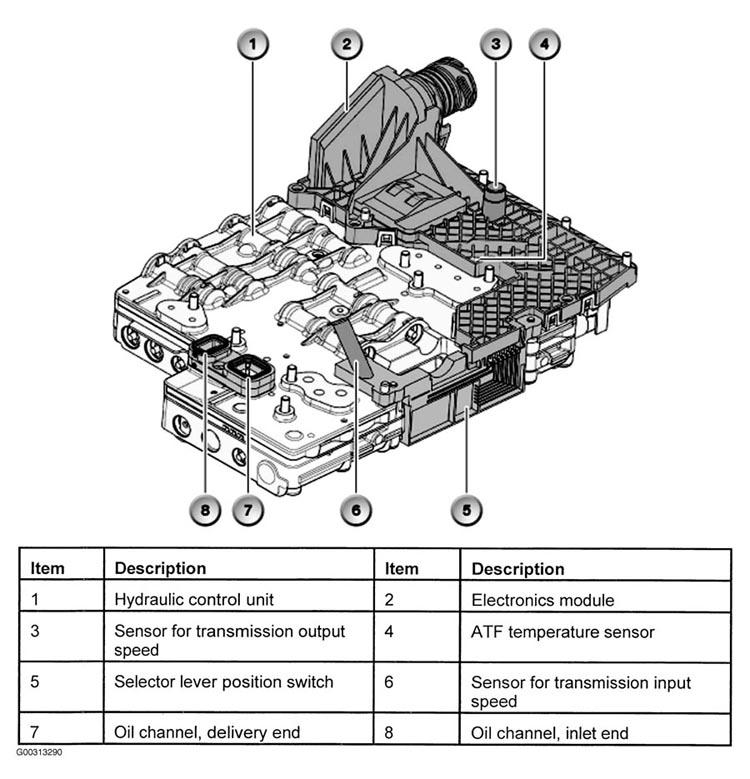

Fig 1: Top View Of Mechatronics Module

Courtesy of BMW OF NORTH AMERICA, INC.

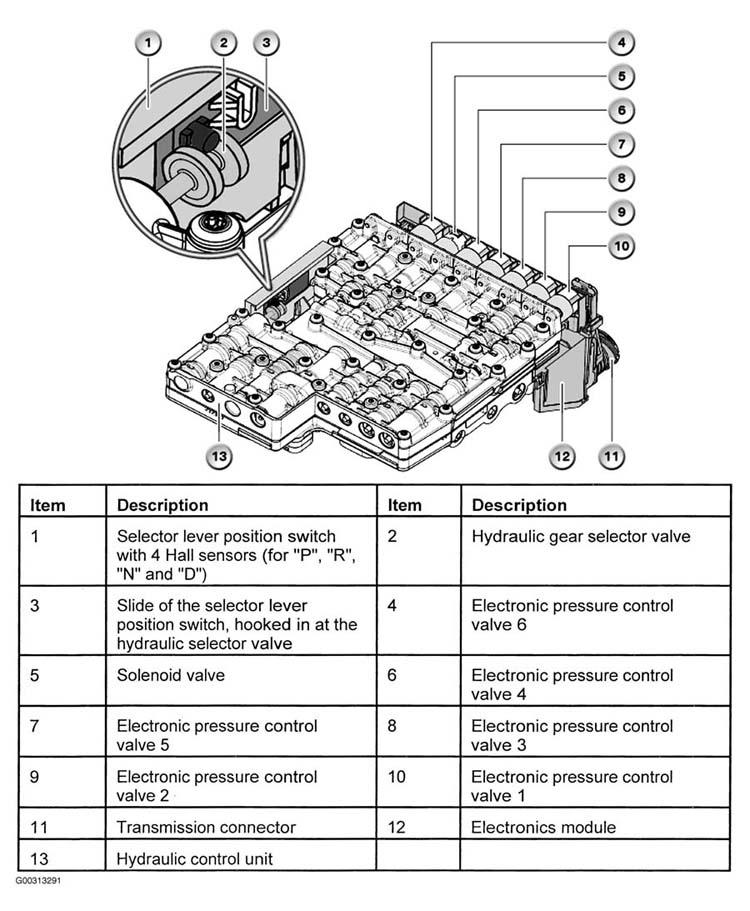

Fig 2: Bottom View Of Mechatronics Module

Courtesy of BMW OF NORTH AMERICA, INC.

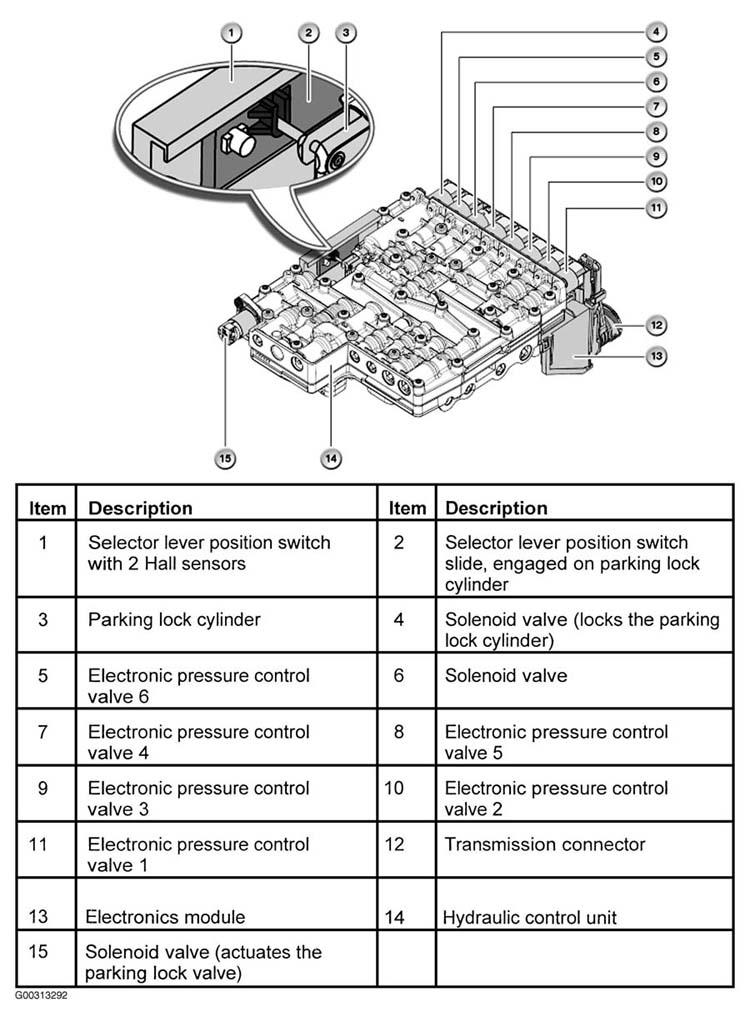

Fig 3: Underside View Of Mechatronics Module

Courtesy of BMW OF NORTH AMERICA, INC.

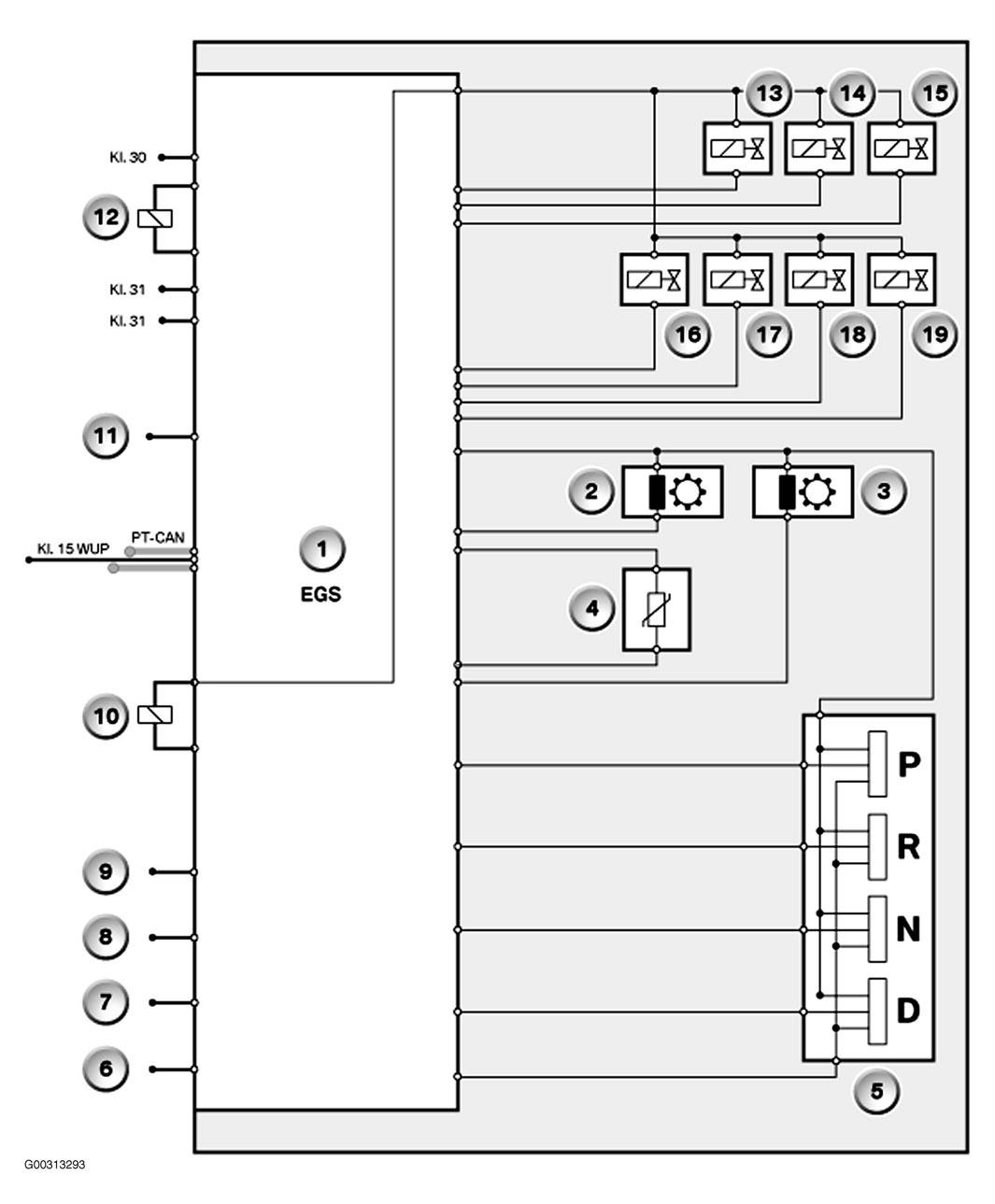

Fig 4: Block Diagram Of Mechatronics Module (E53, E60, E61, E63, E64, E83, E87, E90, E91)

Courtesy of BMW OF NORTH AMERICA, INC.

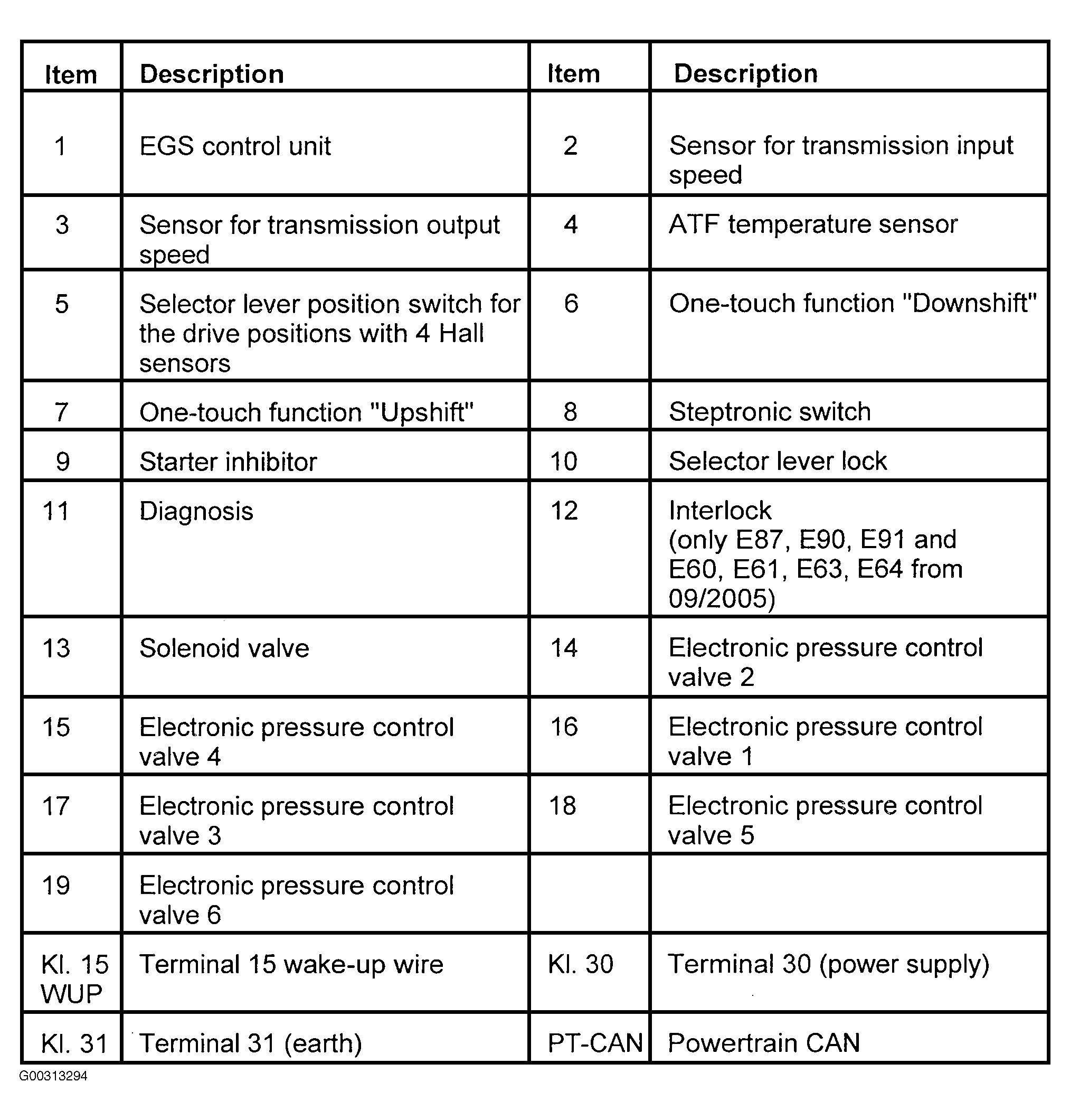

Fig 5: Legend For Mechatronics Module Block Diagram (E53, E60, E61, E63, E64, E83, E87, E90, E91)

Courtesy of BMW OF NORTH AMERICA, INC.

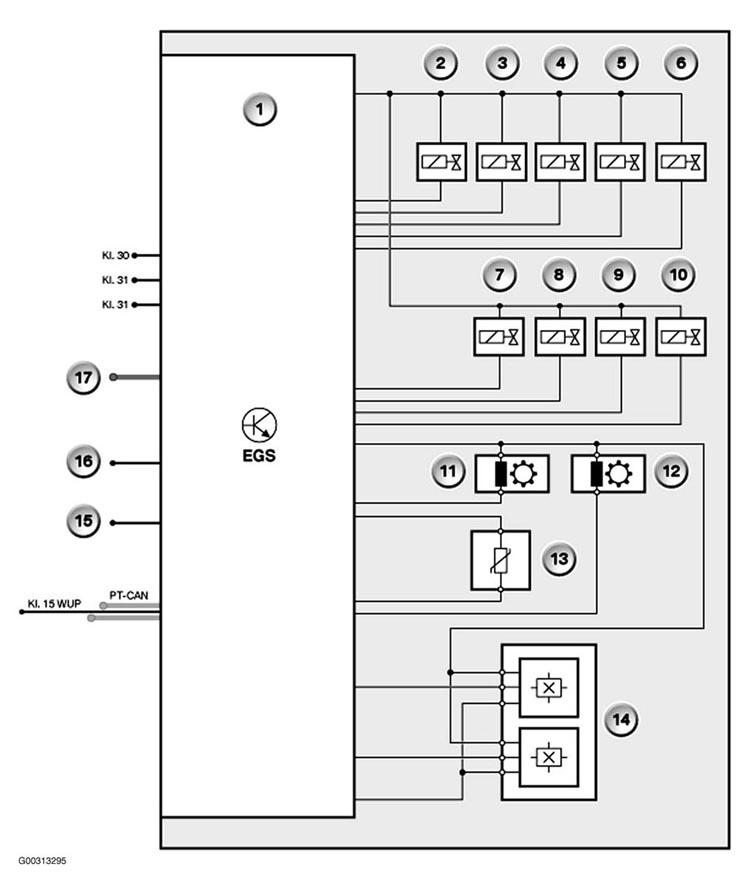

Fig 6: Block Diagram Of Mechatronics Module (E65, E66)

Courtesy of BMW OF NORTH AMERICA, INC.

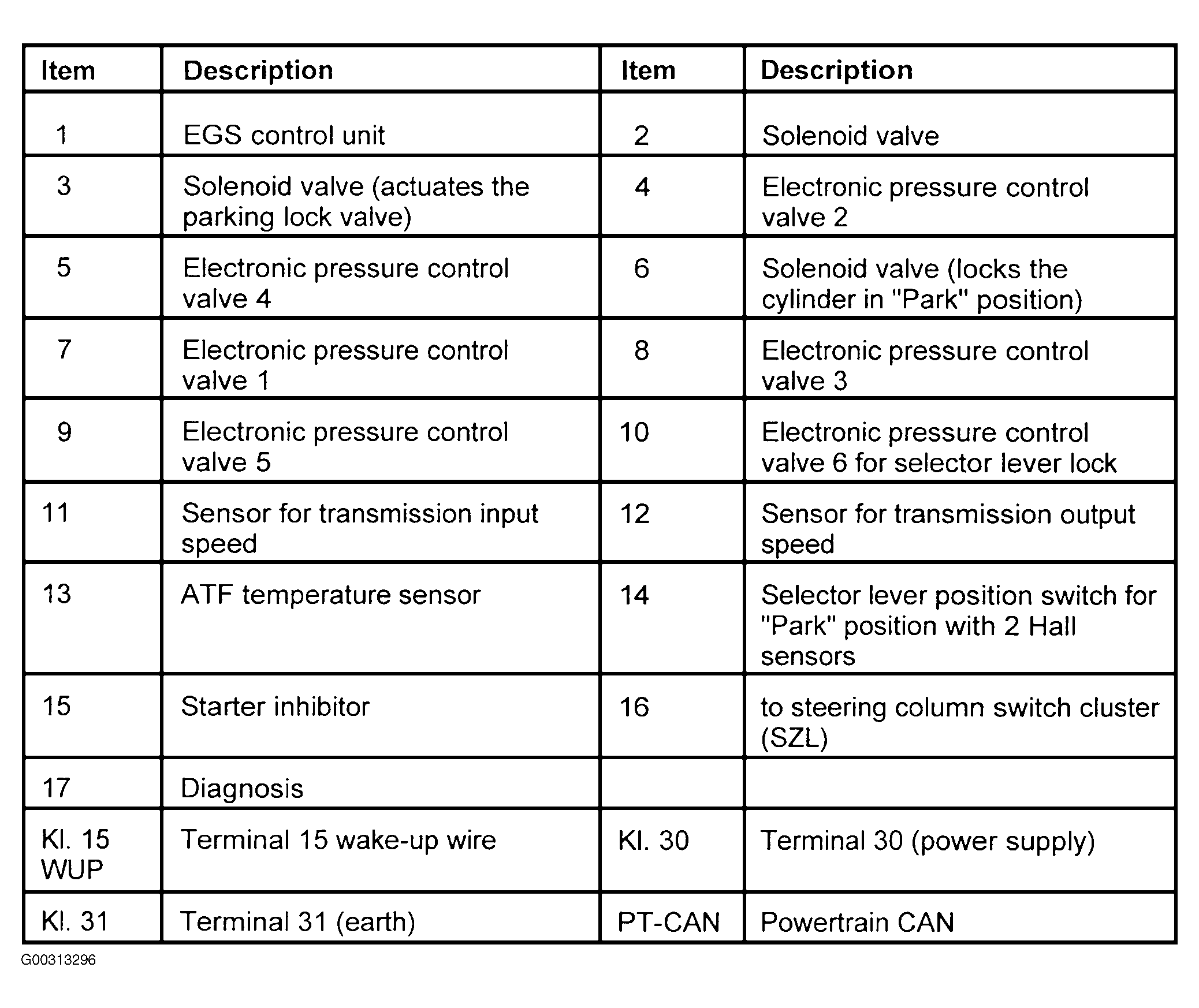

Fig 7: Legend For Mechatronics Module Block Diagram (E65, E66)

Courtesy of BMW OF NORTH AMERICA, INC.
