Installation Location

The mechatronics module is a combination of hydraulic unit and electronics module. The mechatronics module is installed in the transmission oil pan.

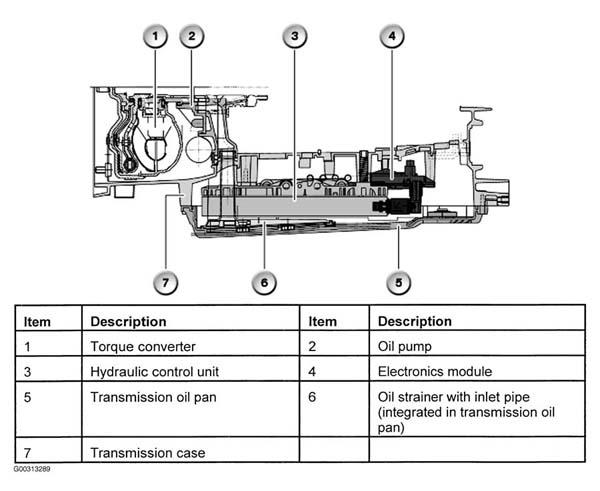

Fig 1: Identifying Installed Location Of Mechatronics Module

Courtesy of BMW OF NORTH AMERICA, INC.
