FixVault
Home
›
BMW
›
2005
›
545i Standard
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Engine Management - Overview
›
E60 Engine management
›
Ms45.1
›
Fuel Management
›
Fuel System
Fuel System

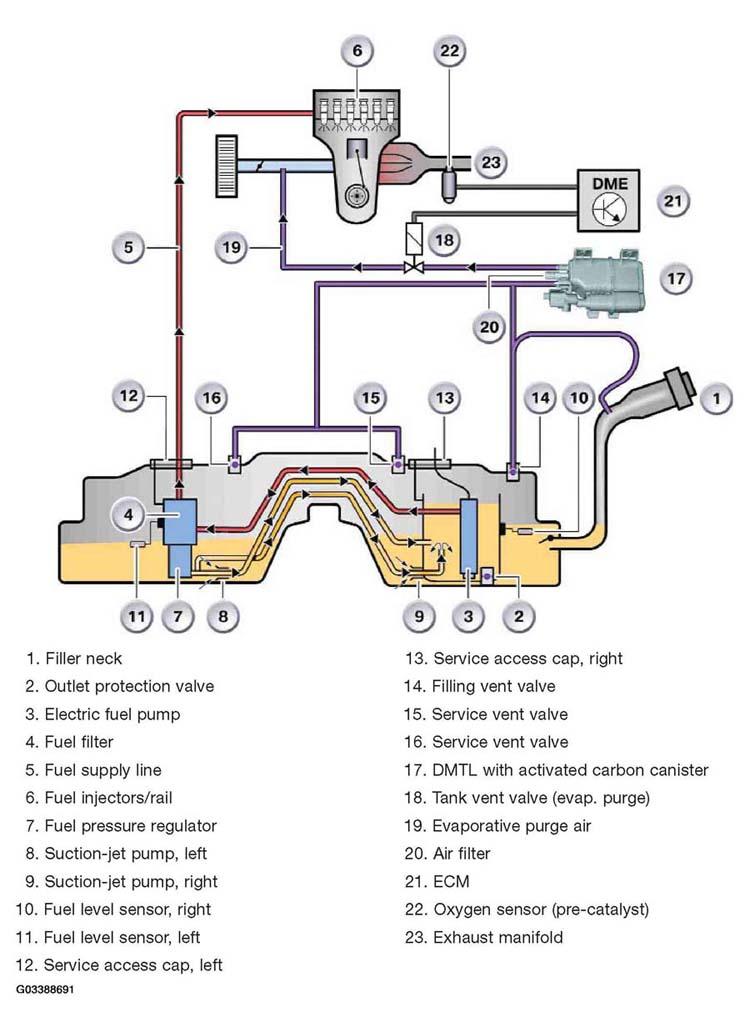

Fig 1: Identifying Fuel System Components
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
