Diagnostic Trouble Codes With Test Charts (V8)
›
Test Group Identification
›
Catalyst Monitoring
›
Block Diagram Of System Operation
Block Diagram Of System Operation

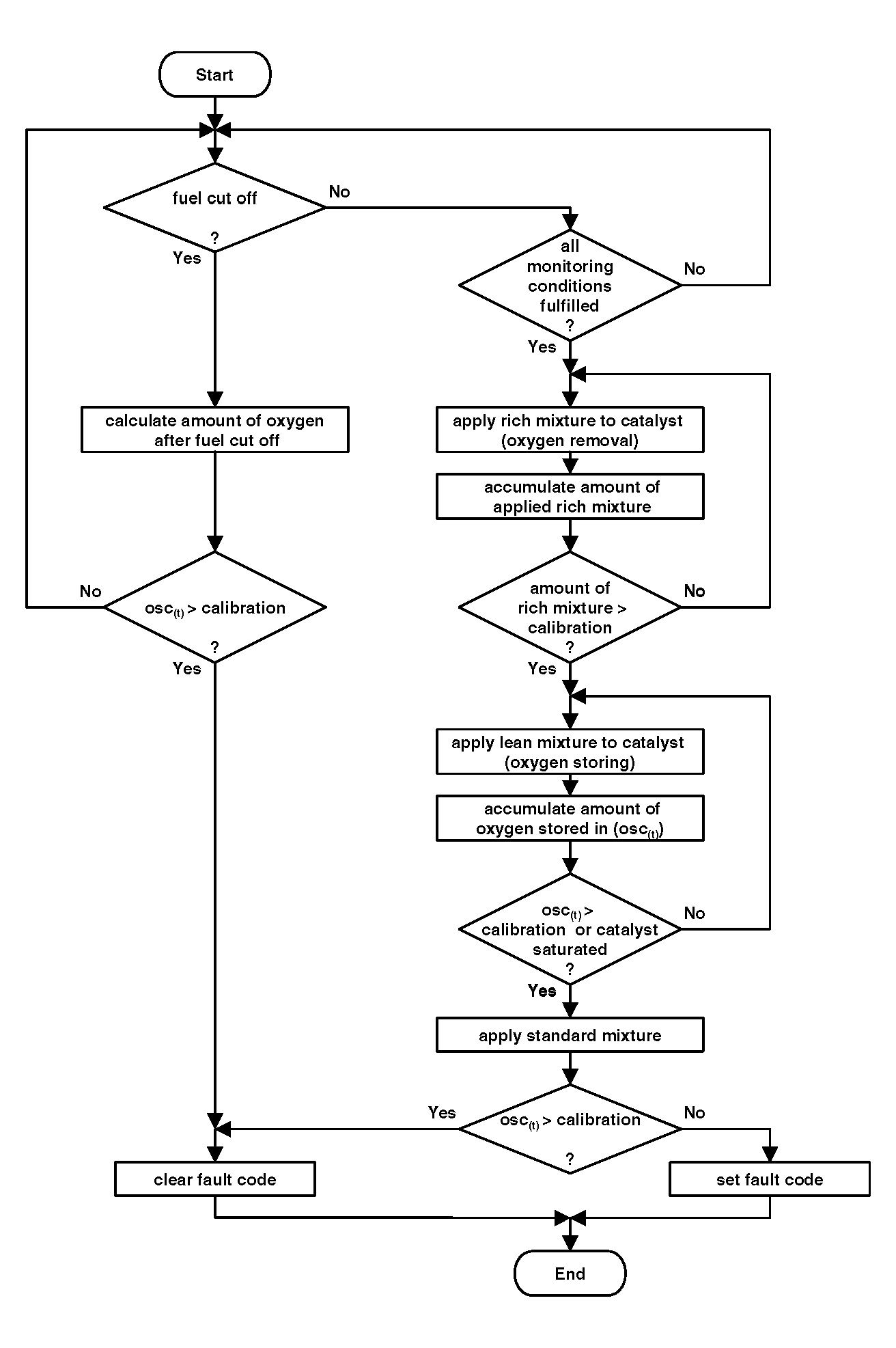

Fig 1: OBD System Operation Block Diagram
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
