11 37 700 Replacing Control Unit (Valvetronic)

Necessary Preliminary Tasks:

IMPORTANT: Follow instructions for removing and installing electronic control units.

Remove holder (1).

Remove cover (2).

NOTE: Remove holder (3). Only necessary when removing wiring harness.

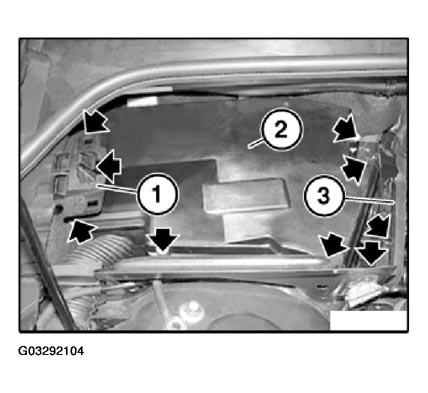

Fig 1: Locating Holder And Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection on Valvetronic control unit (1).

Remove Valvetronic control unit (2).

Fig 2: View Of Valvetronic Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Add final details to vehicle.

Check function of DME.
