Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Behind Glove Box

G00420838

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 2: Under Center Console

G00358546

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 3: Right Rear Of Engine Compartment

G00358547

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 4: Left Side Of Luggage Compartment

G00358548

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 5: Left Rear Passenger Compartment

G00358549

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 6: Under Passenger's Seat

G00358550

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 7: Passenger's Seat

G00358551

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 8: Front Headliner

G00358552

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 9: Liftgate

G00358553

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 10: Left Rear Engine Compartment

G00358554

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 11: Left Rear Engine Compartment

G00420839

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 12: Steering Column Bottom

G00358556

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 13: Right Side Of Luggage Compartment

G00358557

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 14: Behind Rear Seat Backrest In Luggage Compartment

G00358558

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 15: Right Rear Passenger Compartment

G00358559

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 16: Behind Glove Box

G00358560

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 17: Left Rear Passenger Compartment

G00358561

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 18: Left Side Of Luggage Compartment

G00358562

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 19: Under Passenger's Seat

G00358563

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 20: Headliner

G00358564

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 21: Under Center Console

G00358565

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 22: Center Console

G00358566

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 23: Front Right Lock Carrier

G00358567

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 24: Front Left Lock Carrier

G00358568

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 25: Left Side Of Luggage Compartment

G00358569

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 26: Behind Rear Seat In Luggage Compartment

G00358570

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 27: Behind Glove Box

G00358571

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 28: Driver's Door

G00358572

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 29: Passenger's Door

G00358573

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 30: Under Left Side Of Dash

G00358574

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 31: Left Rear Engine Compartment

G00358575

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 32: Left Rear Engine Compartment

G00420840

Courtesy of BMW OF NORTH AMERICA, INC.

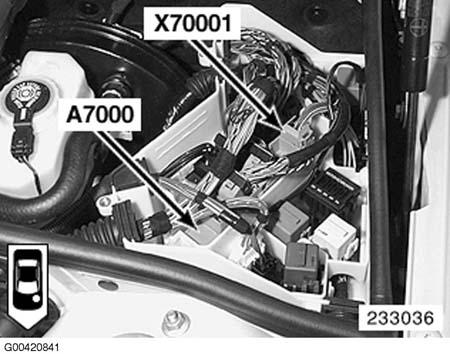

Fig 33: Left Rear Engine Compartment

G00420841

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 34: Right Rear Side Of Luggage Compartment

G00358581

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 35: Right Rear Engine Compartment

G00358582

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 36: Right Front Wheel Hub

G00358584

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 37: Left Front Wheel Hub

G00358585

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 38: Right Rear Wheel Hub

G00358586

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 39: Left Rear Wheel Hub

G00358587

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 40: Under Right Rear Seat

G00358589

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 41: Front Right Wheelwell

G00358590

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 42: Behind Center Console

G00358591

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 43: Right Side Of Left Footwell

G00358592

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 44: Left Front Wheel Brake

G00358593

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 45: Right Rear Wheel Brake

G00358594

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 46: Left Rear Engine Compartment

G00358595

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 47: Under Left Front Of Vehicle

G00358596

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 48: Right Side Of Luggage Compartment

G00358597

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 49: Right Side Of Luggage Compartment

G00358598

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 50: Under Right Center Of Rear Bumper

G00358599

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 51: Under Center Of Rear Bumper

G00358600

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 52: Under Right Rear Bumper

G00358601

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 53: Under Right Rear Bumper

G00358602

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 54: Right Front Axle

G00358603

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 55: Under Passenger's Seat

G00358604

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 56: Interior Rearview Mirror

G00358605

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 57: Right Rear Axle

G00358606

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 58: Center Top Of Dash

G00358607

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 59: Under Left Side Of Dash

G00358608

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 60: Under Driver's Seat

G00358609

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 61: Left Rear Side Of Engine Compartment

G00358610

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 62: Right Rear Engine Compartment

G00358611

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 63: Front Headliner

G00358612

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 64: Front Headliner

G00358613

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 65: Front Of Engine Compartment

G00358614

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 66: Left Side Of Engine

G00358615

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 67: Left Side Of Transmission

G00358616

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 68: Left Side Of Transmission

G00358617

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 69: Under Vehicle On Exhaust

G00358618

Courtesy of BMW OF NORTH AMERICA, INC.

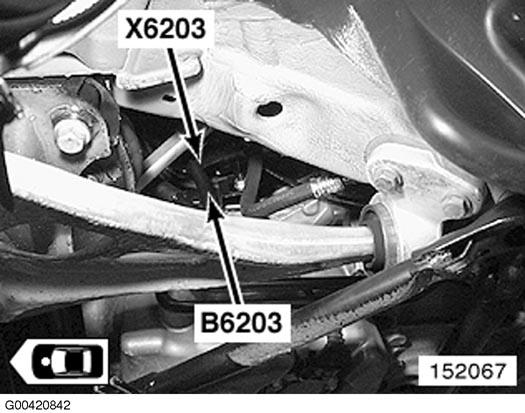

Fig 70: Left Side Of Engine

G00420842

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 71: Front Of Engine

G00358620

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 72: Top Center Of Engine

G00358621

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 73: Right Side Of Engine Compartment

G00358622

Courtesy of BMW OF NORTH AMERICA, INC.

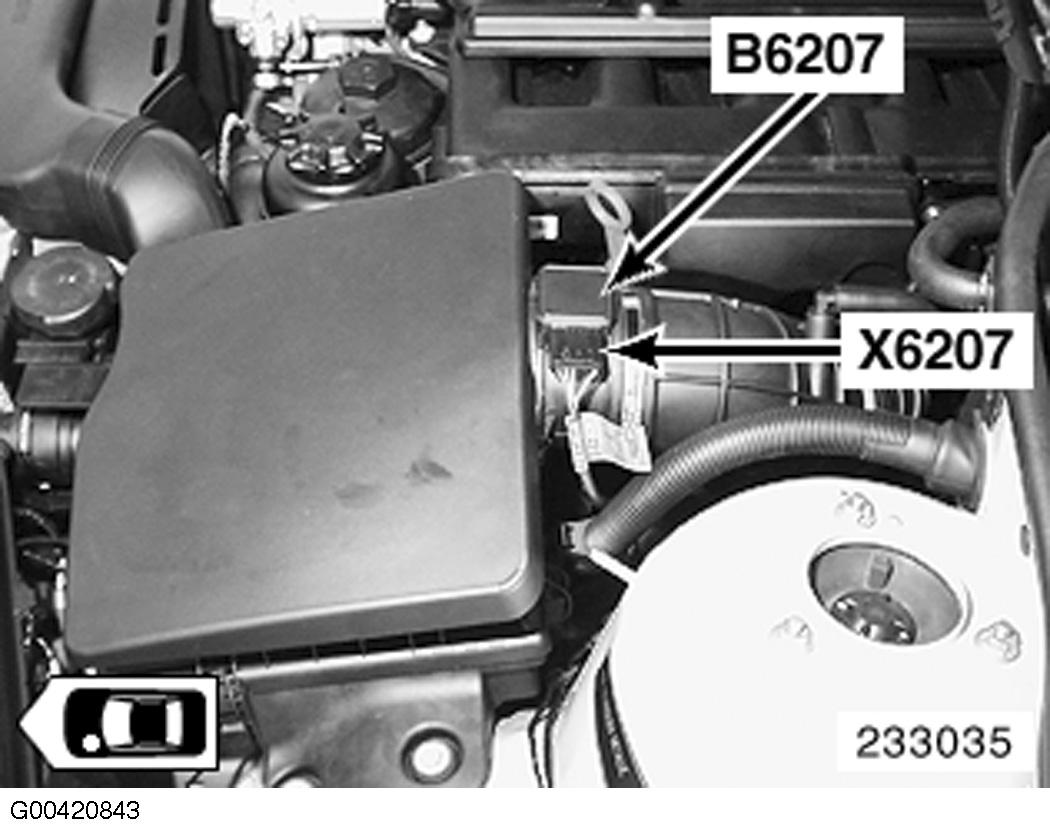

Fig 74: Left Side Of Engine Compartment

G00420843

Courtesy of BMW OF NORTH AMERICA, INC.

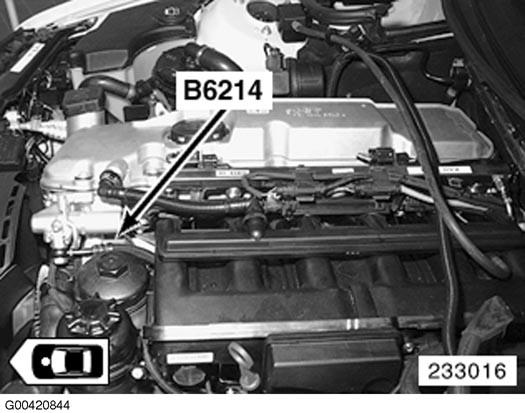

Fig 75: Front Of Engine

G00420844

Courtesy of BMW OF NORTH AMERICA, INC.

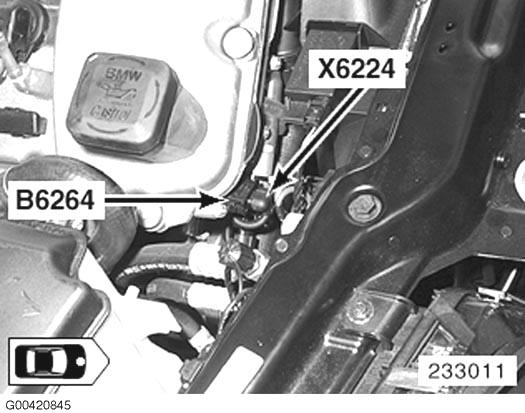

Fig 76: Right Front Of Engine

G00420845

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 77: Left Side Of Engine, Under Intake Pipe

G00358626

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 78: Left Side Of Engine

G00358627

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 79: Rear Of Engine, Under Intake Pipe

G00358628

Courtesy of BMW OF NORTH AMERICA, INC.

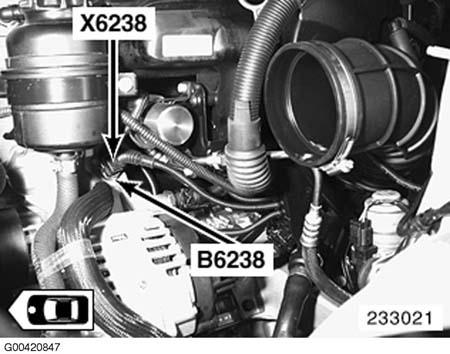

Fig 80: Front Of Engine, Under Intake Pipe

G00420847

Courtesy of BMW OF NORTH AMERICA, INC.

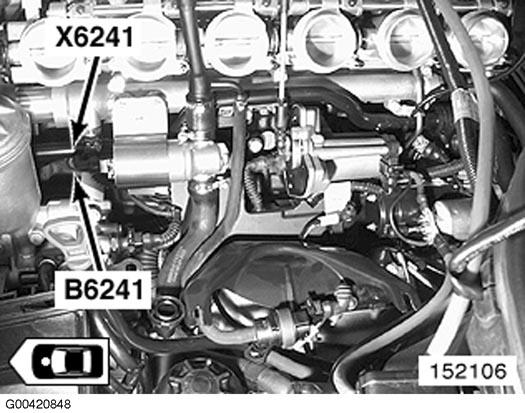

Fig 81: Left Side Of Engine, Under Intake Pipe

G00420848

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 82: Left Side Of Engine, Under Intake Pipe

G00358633

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 83: Left Side Of Engine, Under Intake Pipe

G00358634

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 84: Underside Of Oil Pan

G00358636

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 85: Front Of Engine

G00358638

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 86: Top Of Transmission

G00358640

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 87: Left Side Of Transmission

G00358642

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 88: Right Side Of Engine

G00358644

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 89: Front Exhaust Pipe

G00358645

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 90: Left Rear Of Engine

G00358646

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 91: Engine Hood

G00358647

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 92: Engine Hood

G00358648

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 93: Steering Wheel

G00358649

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 94: Right Side Of Dash

G00358650

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 95: Right Side Of Driver's Seat

G00358651

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 96: Left Side Of Passenger's Seat

G00358652

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 97: Driver's Door

G00358653

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 98: Passenger's Door

G00358654

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 99: Behind Left Side Of Dash

G00358655

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 100: Behind Right Side Of Dash

G00358656

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 101: Right Rear Luggage Compartment

G00358657

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 102: Left Rear Door

G00358658

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 103: Left Rear Passenger Compartment

G00358659

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 104: Right Rear Door

G00358660

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 105: Right Rear Passenger Compartment

G00358661

Courtesy of BMW OF NORTH AMERICA, INC.

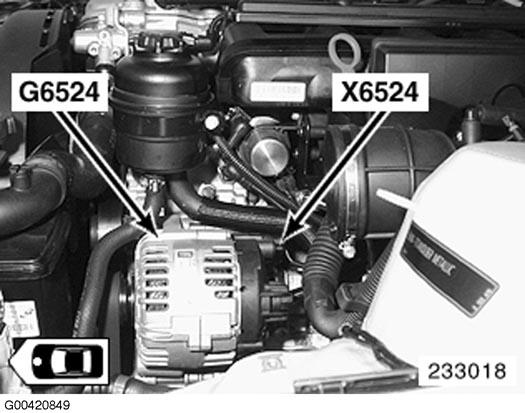

Fig 106: Front Of Engine Compartment

G00420849

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 107: Rear Engine Compartment

G00358663

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 108: Left Front Wheelwell

G00358664

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 109: Right Front Wheelwell

G00358666

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 110: Left Footwell

G00358665

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 111: Behind Left Rear Seat

G00358667

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 112: Left Rear Window

G00358669

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 113: Right "C" Pillar

G00358670

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 114: Under Roof Spoiler

G00358671

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 115: Under Left Side Of Dash

G00358672

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 116: Under Rear Window Shelf

G00358673

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 117: Left Footwell

G00358674

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 118: Left "C" Pillar

G00358675

Courtesy of BMW OF NORTH AMERICA, INC.

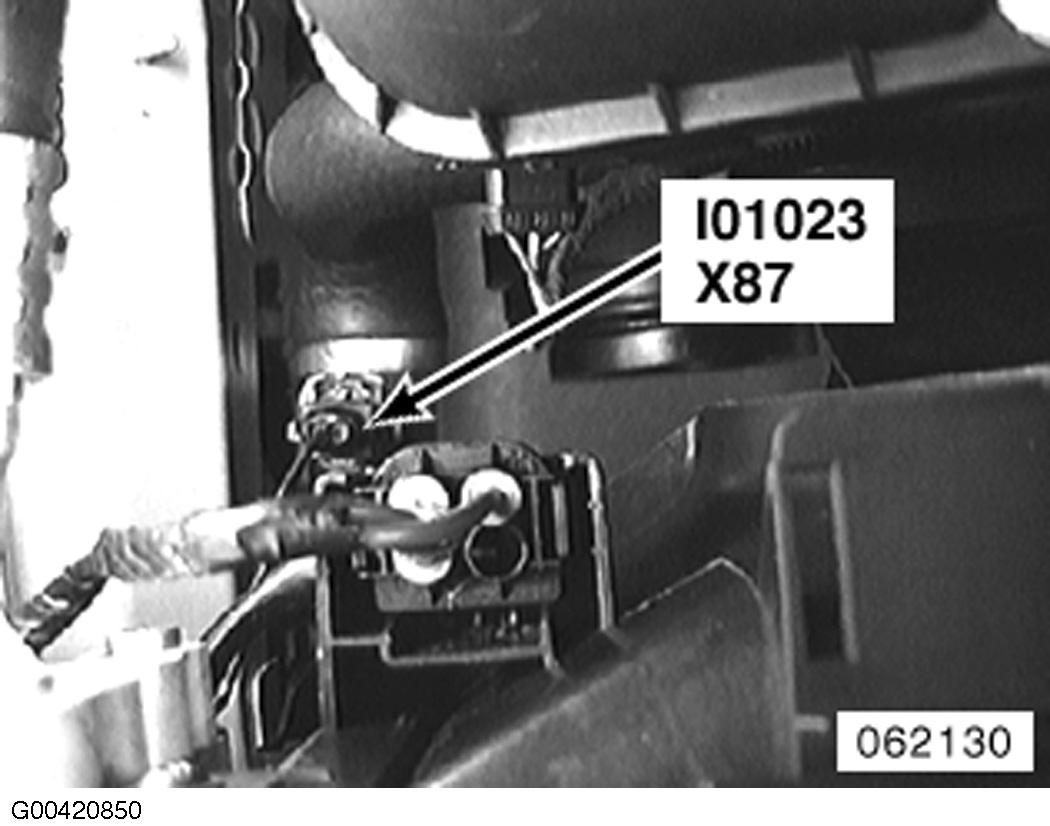

Fig 119: Right Engine Compartment

G00420850

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 120: Left Rear Convertible Top Linkage

G00358678

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 121: Left Rear Convertible Top Linkage

G00358679

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 122: Left Convertible Top Cover

G00358680

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 123: Left Rear Luggage Compartment

G00358681

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 124: Left Rear Luggage Compartment

G00358682

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 125: Left Rear Luggage Compartment

G00358683

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 126: Right Rear Wheelwell

G00358684

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 127: Behind Glove Box

G00358685

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 128: Behind Center Console

G00358686

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 129: Behind Glove Box

G00358687

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 130: Left Rear Engine Compartment

G00358688

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 131: Right Side Of Luggage Compartment

G00358689

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 132: Right Side Of Luggage Compartment

G00358690

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 133: Right Rear Passenger Compartment

G00358691

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 134: Behind Glove Box

G00358692

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 135: Behind Glove Box

G00358693

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 136: Right Footwell

G00358694

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 137: Right Rear Passenger Compartment

G00358695

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 138: Left Rear Engine Compartment

G00358696

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 139: Left Rear Engine Compartment

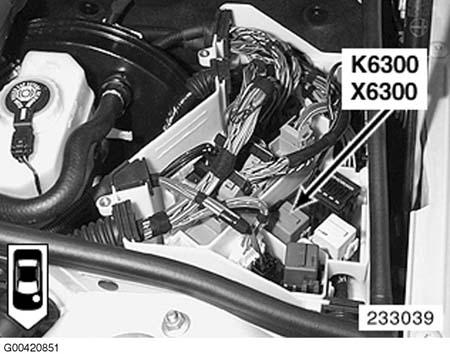

G00420851

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 140: Right Footwell

G00358698

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 141: Left Rear Engine Compartment

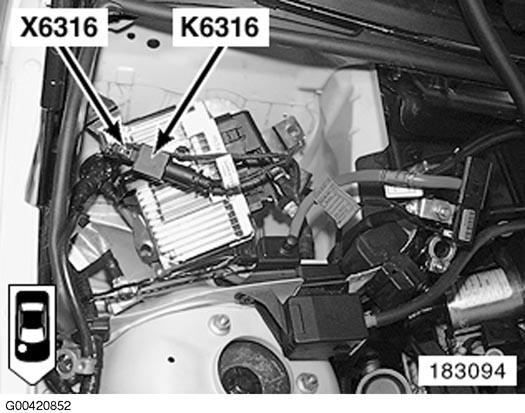

G00420852

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 142: Left Rear Engine Compartment

G00358700

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 143: Left Rear Engine Compartment

G00358701

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 144: Left Rear Engine Compartment

G00358703

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 145: Behind Glove Box

G00358704

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 146: Under Right Side Of Rear Seat

G00358705

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 147: Left Rear Engine Compartment

G00358706

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 148: Right Front Engine Compartment

G00358707

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 149: Right Front Engine Compartment

G00358708

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 150: Front Of Engine Compartment

G00358709

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 151: Right Rear Door

G00358710

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 152: Left Rear Door

G00358711

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 153: Right Side Of Luggage Compartment

G00358712

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 154: Right Side Of Luggage Compartment

G00358713

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 155: Rear Luggage Compartment

G00358714

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 156: Left Rear Door

G00358715

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 157: Driver's Door

G00358716

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 158: Right Rear Door

G00358717

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 159: Passenger's Door

G00358718

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 160: Air Conditioning Unit

G00358719

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 161: Left Side Of Right Footwell

G00358720

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 162: Left Side Of Right Footwell

G00358721

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 163: Left Side Of Right Footwell

G00358722

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 164: Left Side Of Right Footwell

G00358723

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 165: Left Side Of Right Footwell

G00358724

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 166: Left Side Of Engine Compartment

G00358725

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 167: Right Side Of Engine Compartment

G00358726

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 168: Under Rear Window Shelf

G00358727

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 169: Left Front Engine Compartment

G00358728

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 170: Right Front Engine Compartment

G00358729

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 171: Right Rear Luggage Compartment

G00358730

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 172: Left Rear Passenger Compartment

G00358731

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 173: Right Rear Passenger Compartment

G00358732

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 174: Under Center Of Rear Seat

G00358733

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 175: Left Rear Luggage Compartment

G00358734

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 176: Left "C" Pillar

G00358735

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 177: Right "C" Pillar

G00358736

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 178: In Glove Box

G00358737

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 179: Lower Left Rear Engine Compartment

G00358738

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 180: Convertible Top

G00358739

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 181: Air Conditioning Unit

G00358740

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 182: Left Side Of Left Front Footwell

G00358742

Courtesy of BMW OF NORTH AMERICA, INC.

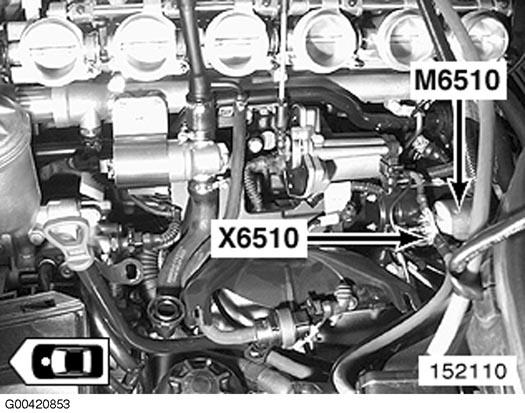

Fig 183: Left Side Of Engine

G00420853

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 184: Under Driver's Seat

G00358744

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 185: Under Driver's Seat

G00358745

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 186: Under Driver's Seat

G00358746

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 187: Under Driver's Seat

G00358747

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 188: Under Driver's Seat

G00358748

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 189: Under Driver's Seat

G00358749

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 190: Under Driver's Seat

G00358750

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 191: Driver's Backrest

G00358751

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 192: Driver's Backrest

G00358752

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 193: Driver's Backrest

G00358753

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 194: Passenger's Backrest

G00358754

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 195: Passenger's Backrest

G00358755

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 196: Passenger's Backrest

G00358757

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 197: Under Passenger's Seat

G00358759

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 198: Under Passenger's Seat

G00358761

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 199: Passenger's Seat

G00358762

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 200: Left Side Of Right Footwell

G00358763

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 201: Under Roof Spoiler

G00358764

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 202: Left "C" Pillar

G00358765

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 203: Left Side Of Luggage Compartment

G00358766

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 204: Behind Rear Seat Backrest, In Luggage Compartment

G00358767

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 205: Behind Right Rear Seat

G00358768

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 206: Left Side Of Luggage Compartment

G00358770

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 207: Luggage Compartment

G00358771

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 208: Under Accelerator Pedal

G00358772

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 209: Steering Column

G00358774

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 210: Right Rear Side Of Engine Compartment

G00358776

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 211: Near Steering Column

G00358777

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 212: Under Rear Center Console

G00358778

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 213: Driver's Seat

G00358780

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 214: Passenger's Seat

G00358781

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 215: Lower Left Side Of Engine

G00358782

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 216: Under Driver's Seat

G00358783

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 217: Under Passenger's Seat

G00358784

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 218: Right Front Engine Compartment

G00358785

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 219: Lift Gate

G00358786

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 220: Rear Window

G00358787

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 221: Driver's Door

G00358788

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 222: Passenger's Door

G00358789

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 223: Right Rear Luggage Compartment

G00358790

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 224: Under Center Of Rear Seat

G00358791

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 225: Clutch Pedal

G00358792

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 226: Right Side Of Transmission

G00358793

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 227: Under Accelerator Pedal

G00358794

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 228: Right Side Of Transmission

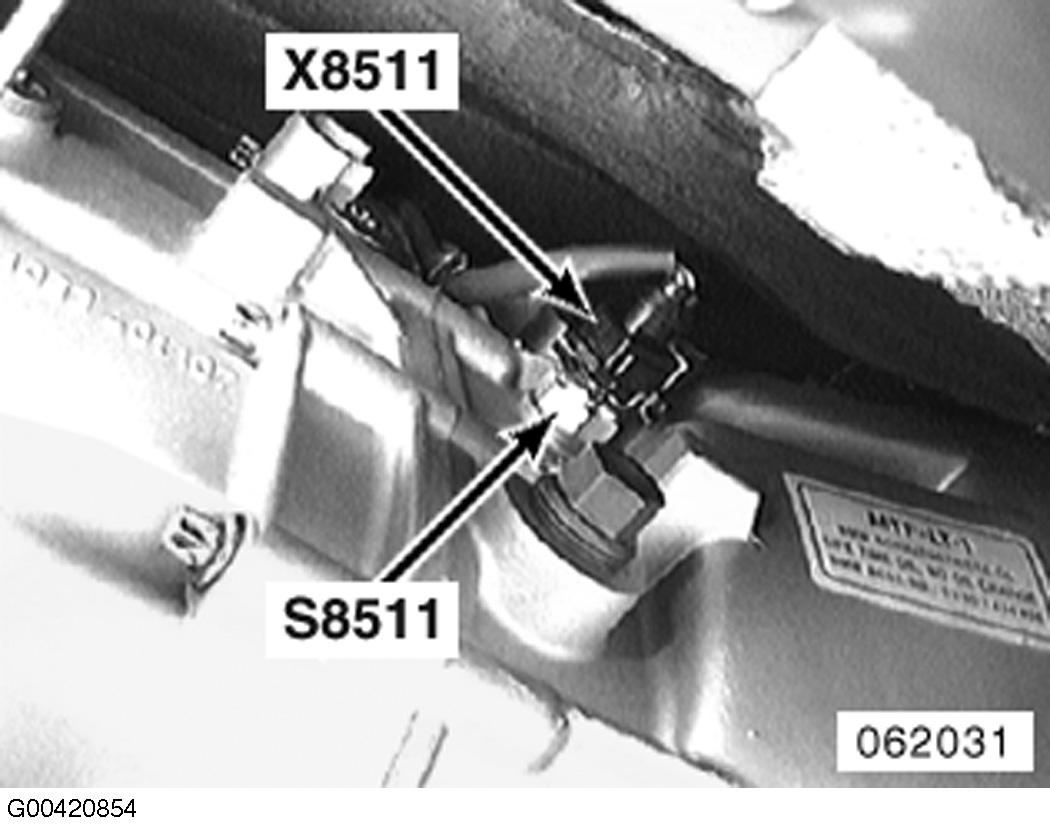

G00420854

Courtesy of BMW OF NORTH AMERICA, INC.

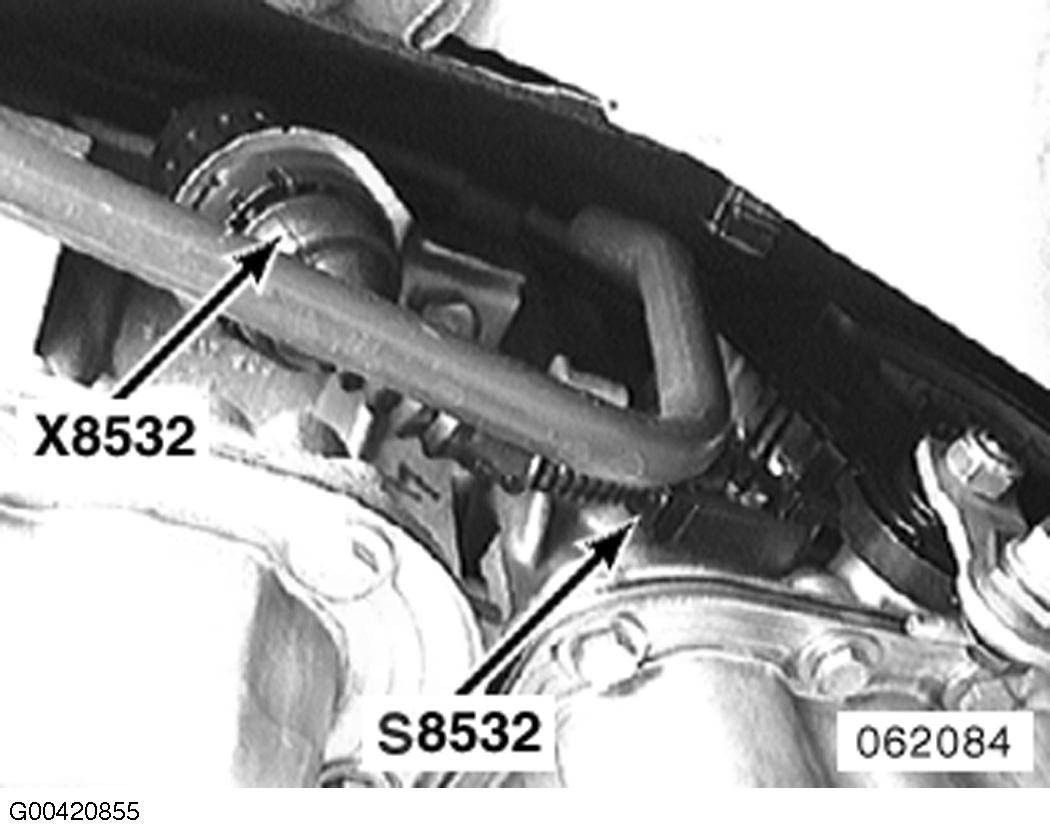

Fig 229: Left Side Of Transmission

G00420855

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 230: Behind Left Rear Seat

G00358797

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 231: Behind Left Rear Seat

G00358798

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 232: Behind Left Rear Seat

G00358799

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 233: Left Front Engine Compartment

G00358800

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 234: Right Front Engine Compartment

G00358801

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 235: Right Rear Engine Compartment

G00358802

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 236: Behind Brake Booster

G00358803

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 237: Under Driver's Seat

G00358804

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 238: Under Driver's Seat

G00358805

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 239: Left Side Of Right Footwell

G00358806

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 240: Left Side Of Luggage Compartment

G00358807

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 241: Left Side Of Luggage Compartment

G00358808

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 242: Behind Glove Box

G00358809

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 243: Under Left Side Of Dash

G00358810

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 244: Right Side Of Transmission Range Switch

G00358811

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 245: Behind Glove Box

G00358812

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 246: Under Center Console

G00358813

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 247: Under Passenger's Seat

G00358814

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 248: Behind Right Rear Seat

G00358815

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 249: Behind Right Rear Seat

G00358816

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 250: Right Rear Passenger Compartment

G00358817

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 251: Right Side Of Luggage Compartment

G00358818

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 252: Right Side Of Luggage Compartment

G00358819

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 253: Under Driver's Seat

G00358820

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 254: Left Rear Engine Compartment

G00358821

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 255: Right Side Of Engine

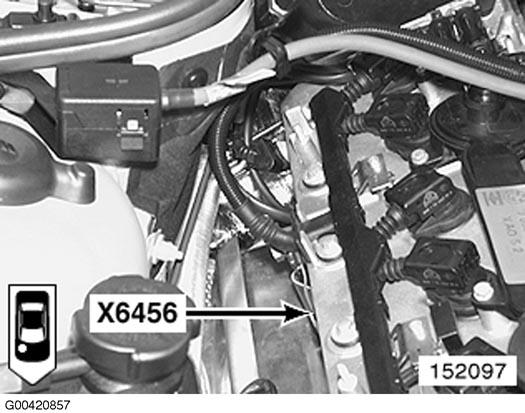

G00420857

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 256: Left Rear Engine Compartment

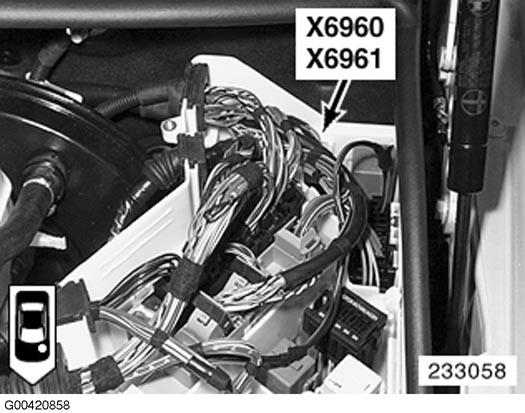

G00420858

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 257: Left Rear Engine Compartment

G00358825

Courtesy of BMW OF NORTH AMERICA, INC.

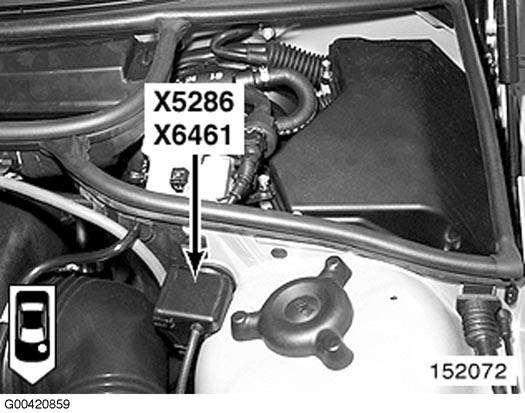

Fig 258: Left Rear Engine Compartment

G00420859

Courtesy of BMW OF NORTH AMERICA, INC.

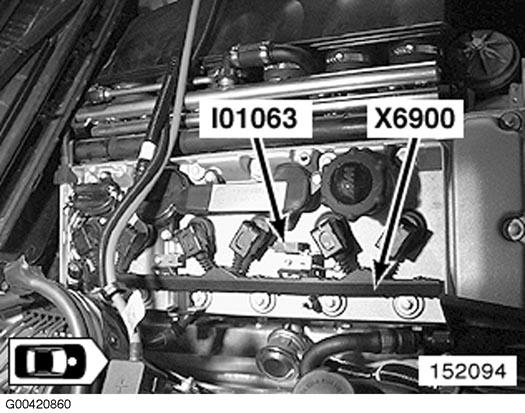

Fig 259: Right Side Of Engine

G00420860

Courtesy of BMW OF NORTH AMERICA, INC.

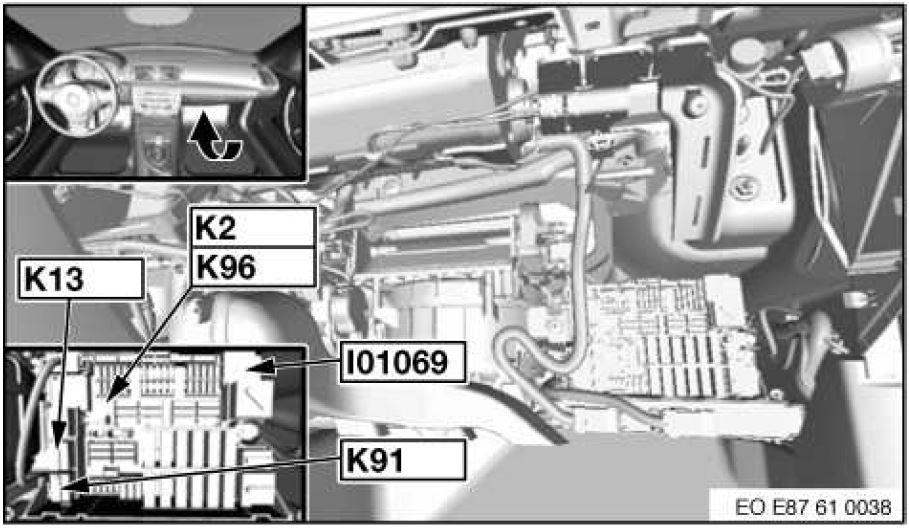

Fig 260: Under Right Side Of Dash

G00575453

Courtesy of BMW OF NORTH AMERICA, INC.
