IHKA System Circuit Diagram

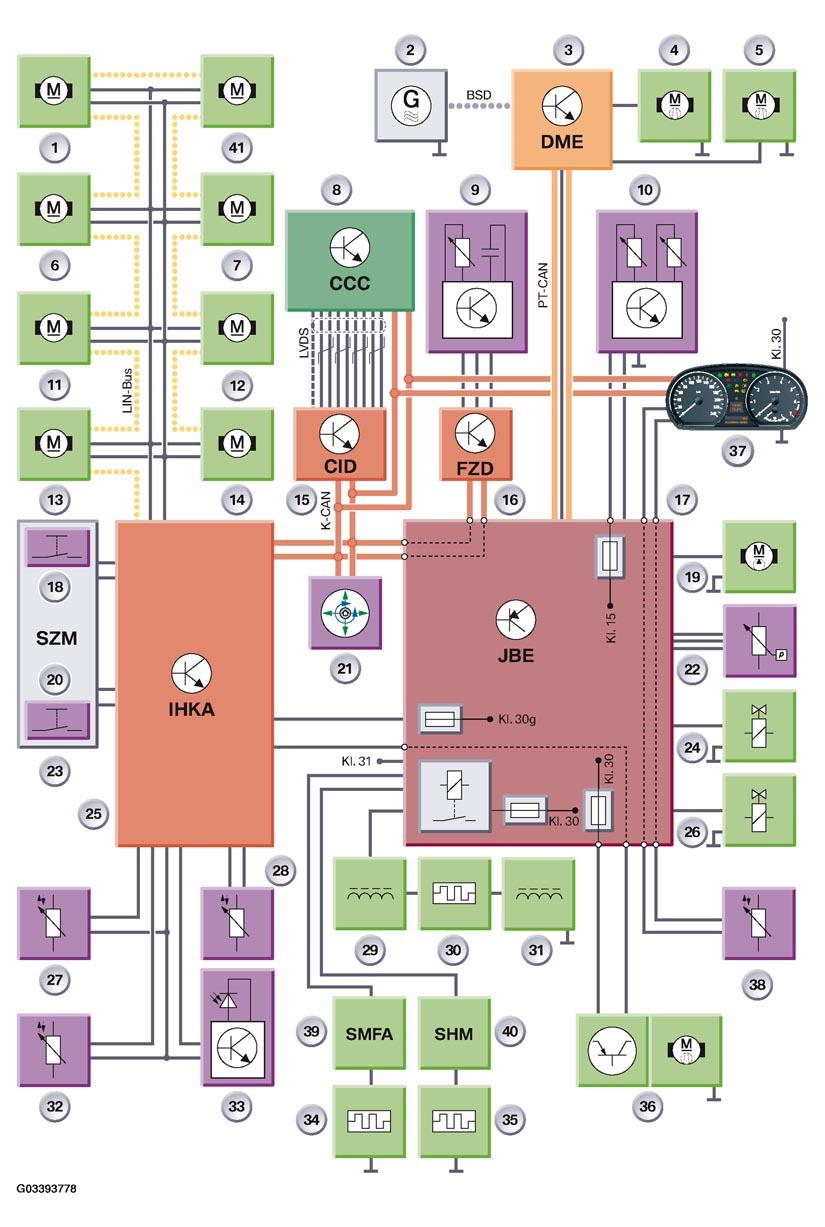

Fig 1: IHKA System Circuit Diagram
G03393778Courtesy of BMW OF NORTH AMERICA, INC.
LEGEND FOR IHKA SYSTEM CIRCUIT DIAGRAM

Index Explanation Index Explanation
1 Rear blend/stratification motor 22 Pressure sensor
2 Alternator 23 Center console switch cluster (SZM)
3 Digital motor electronics (DME) 24 Water valve
4 Electric water pump 25 Outside temperature sensor
5 Engine cooling fan 26 Auxiliary water pump (not for US)
6 Ventilation motor 27 Evaporator temperature sensor
7 Front blend/stratification motor 28 Footwell temperature sensor
8 Car communication computer (CCC) 29 Blocking circuit (filter)
9 Condensation sensor 30 Rear window defogger
10 AUC II sensor 31 Blocking circuit (filter)
11 Fresh air/recirculation motor 32 Ventilation temperature sensor
12 Mix air flap motor, left 33 Solar sensor (1-channel)
13 Defrost flap 34 Seat heating element, left
14 Footwell flap motor 35 Seat heating element, right
15 Central information display (CID) 36 Blower motor and final stage
16 Roof function center (FZD) 37 Instrument Cluster
17 Junction Box Electronics Control Module (JBE) 38 Outside temperature sensor
18 Seat heater button, left 39 Driver's seat module
19 A/C compressor valve 40 Seat heating module (passenger)
20 Seat heater button, right 41 Mix air flap motor, right
21 Controller
