E90 Test Cables (04 12 05)

E90 TEST CABLES

TECHNICAL SERVICE BULLETIN

SUBJECT

E90 Test Cables

SITUATION

Distribution of the following tools will be through the Automatic Tool Shipment Program. Additional tools may be purchased through your PDC.

47 Pin adapter cable

PN 90 88 6 612 330

Used in conjunction with 612 320 and 614 390 or 614380 to diagnose the junction box.

23 Pin adapter cable

PN 90 88 6 612 320

Used only in conjunction with 612 330 and 614 390 or 614 380 to diagnose the junction box.

51 Pin adapter cable

PN 90 88 6 612 340

Used in conjunction with 614 390 or 614 380 to diagnose the FRM.

4 Pin adapter cable

PN 90 88 6 612 350

Used to perform measurements on the roof function center FZD.

36 Pin adapter cable

PN 90 88 6 612 360

Used in conjunction with 614 390 or 614 380 to diagnose the door contacts.

6 Pin adapter cable

PN 90 88 6 612 370

Used to perform measurements on the steering column switch cluster SZL.

12 Pin adapter cable

PN 90 88 6 612 380

Used to perform measurements on the headlights. May also be used on E53 from 10/2003.

3 Pin adapter cable

PN 90 88 6 612 390

Used to perform measurements on the Park Distance Control PDC ultrasonic sensors.

88 Pin adapter cable

PN 90 88 6 612 420

Used to perform measurements on the Digital Motor Electronics DME in conjunction with 614 380.

1. Adapter cable
2. Cover plate for 614 380 (pin assignment)

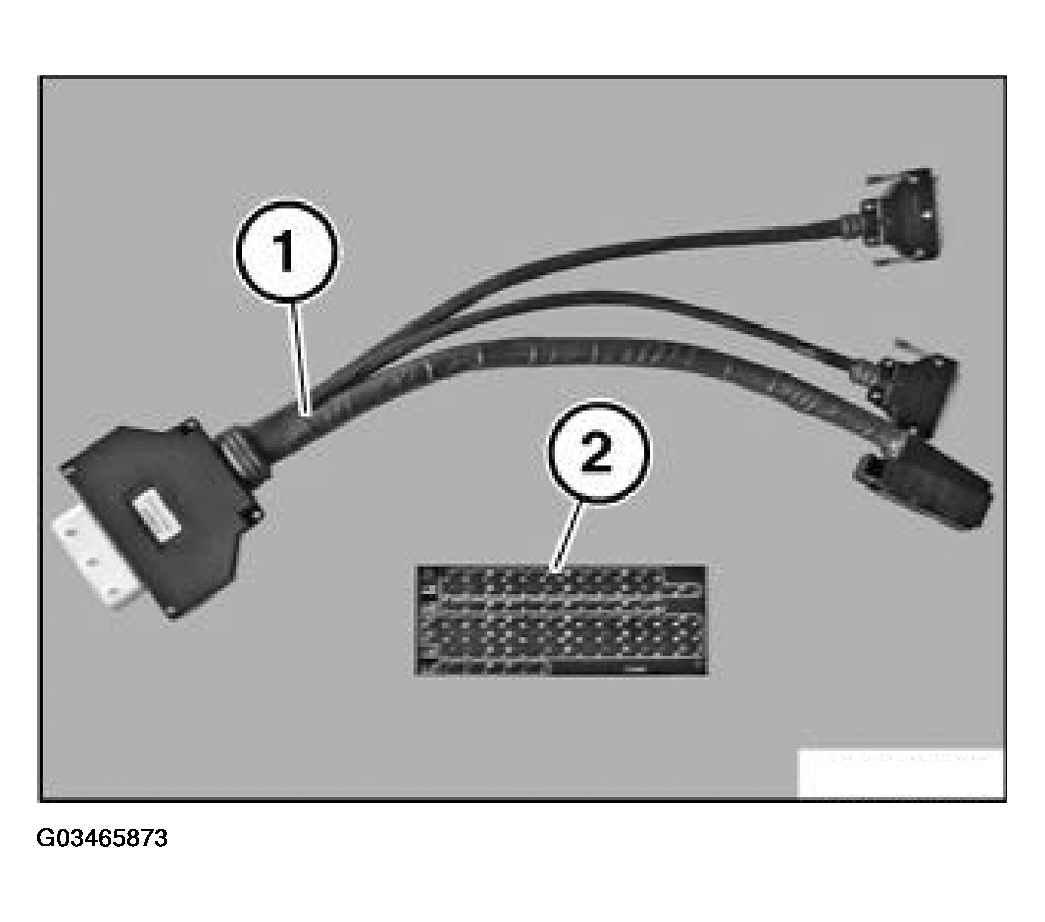

   Fig 9: 88 Pin Adapter Cable



14 Pin adapter cable

PN 90 88 6 612 430

Used to perform measurements on the heating system in conjunction with 611 459.

WARRANTY INFORMATION

Refer to Parts Information bulletin 01 01 95 for tool warranty details.
