To Select Check Control Messages

The instrument cluster shows a series of vehicle statuses and consequently generates CC messages.

The following procedure must be performed to select a CC message:

  1. Press the rocker switch in the steering column stalk up or down until the "Check Control" function appears in the instrument cluster.
  2. Press the BC button on the steering column stalk and confirm the display.
  3. Press the rocker switch up or down to select the CC messages.
  4. Press the BC button on the steering column stalk to exit the menu.

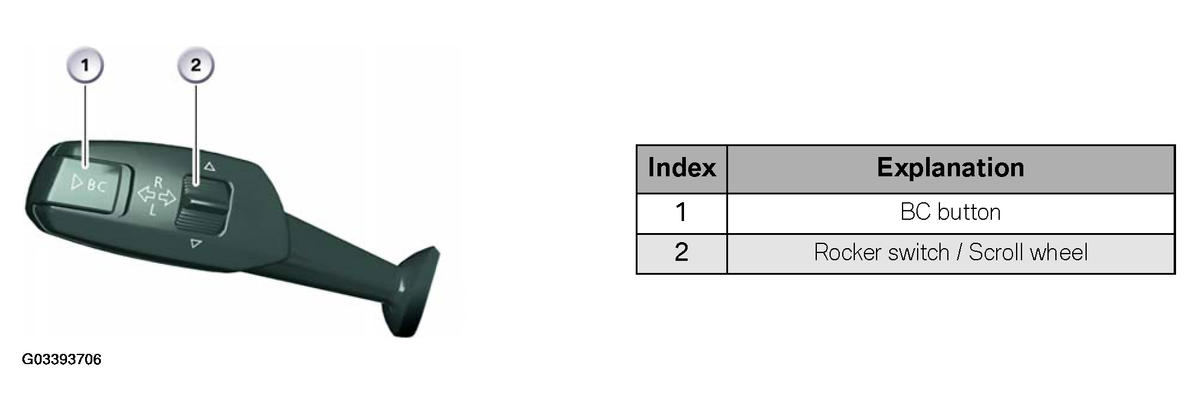

    Fig 1: Identifying BC Button And Rocker Switch
    G03393706Courtesy of BMW OF NORTH AMERICA, INC.
