Display Areas

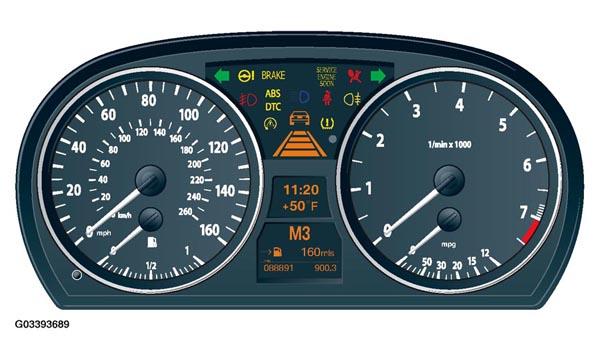

The instrument cluster features display areas for:
- Speedometer
- Tachometer
- Instantaneous fuel Economy gauge
- Fuel gauge
- Outside temperature display
- Indicator and warning lamps
- Liquid crystal display
- Program and gear displays for automatic transmission and sequential manual gearbox SMG.

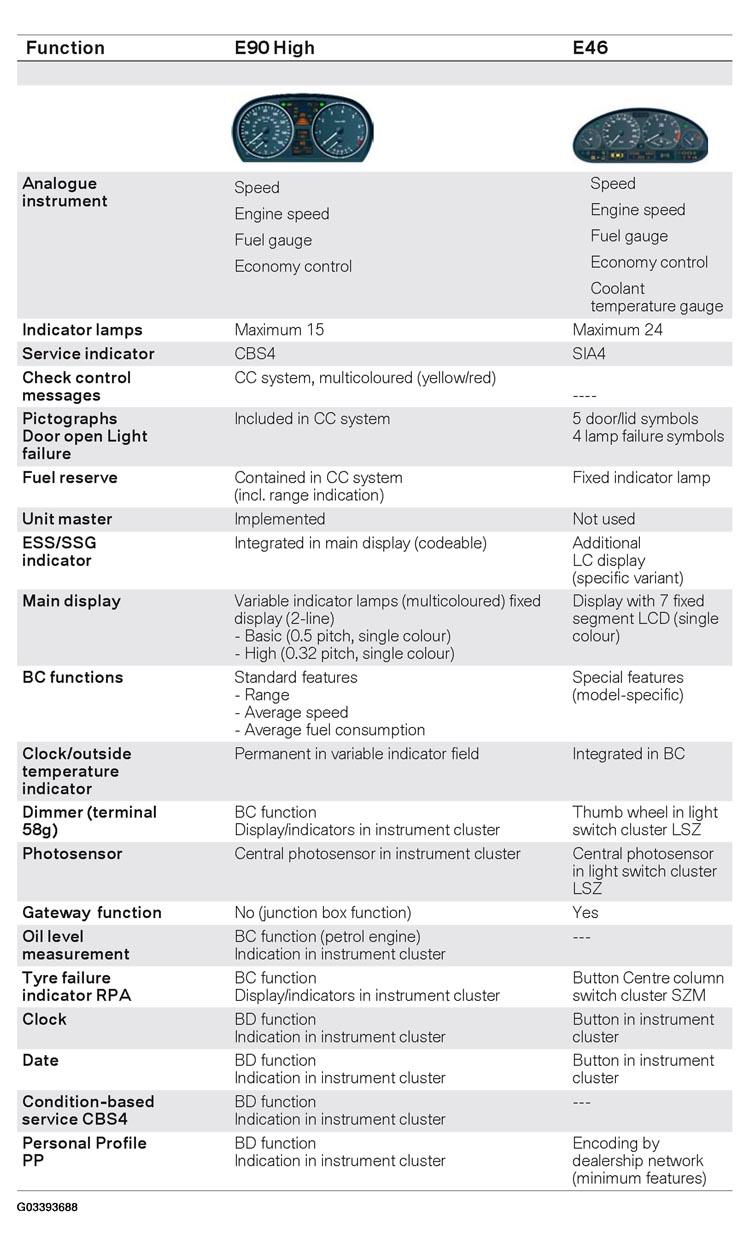

The following table provides an exact comparison, illustrating the functions and symbols that have changed compared to the BMW 3 Series (E46).
