Mode 6
›
Mode 06 Data
›
Mode 06 Data
Mode 06 Data

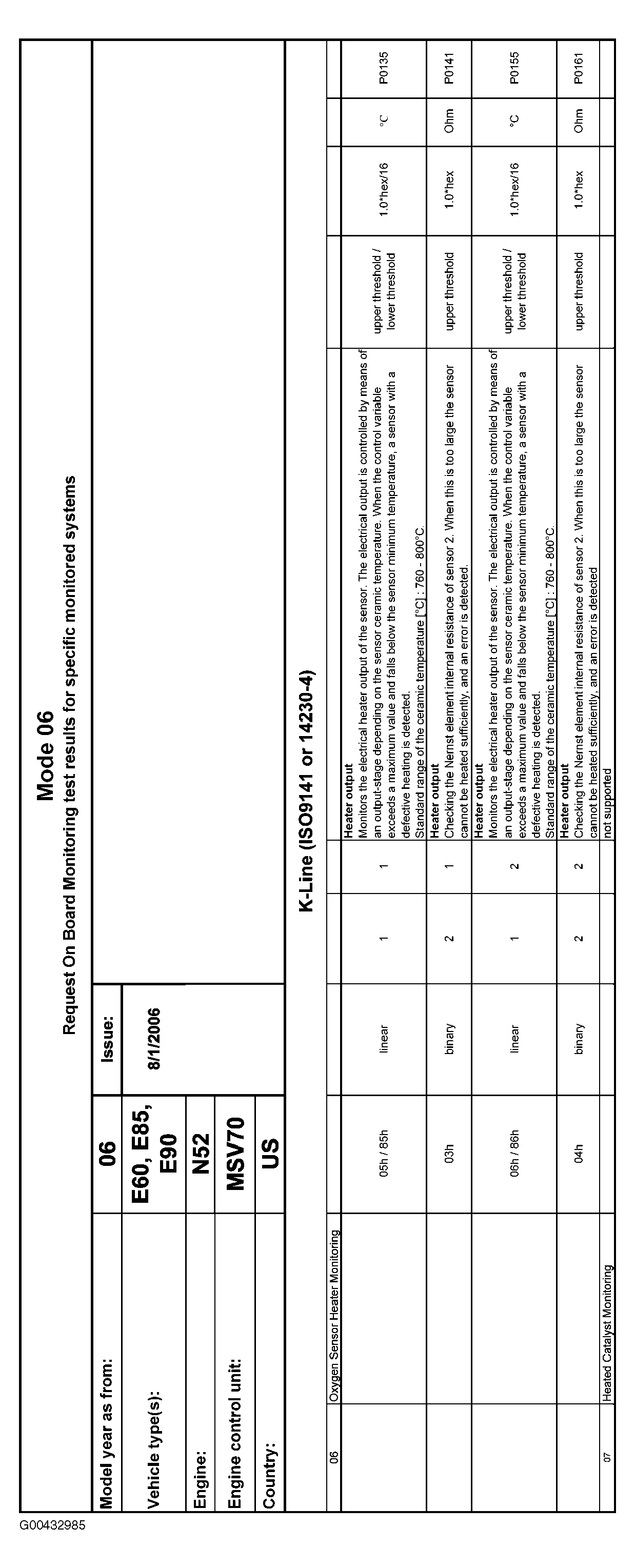

Fig 1: Mode 06 Data (1 Of 2)
Courtesy of BMW OF NORTH AMERICA, INC.

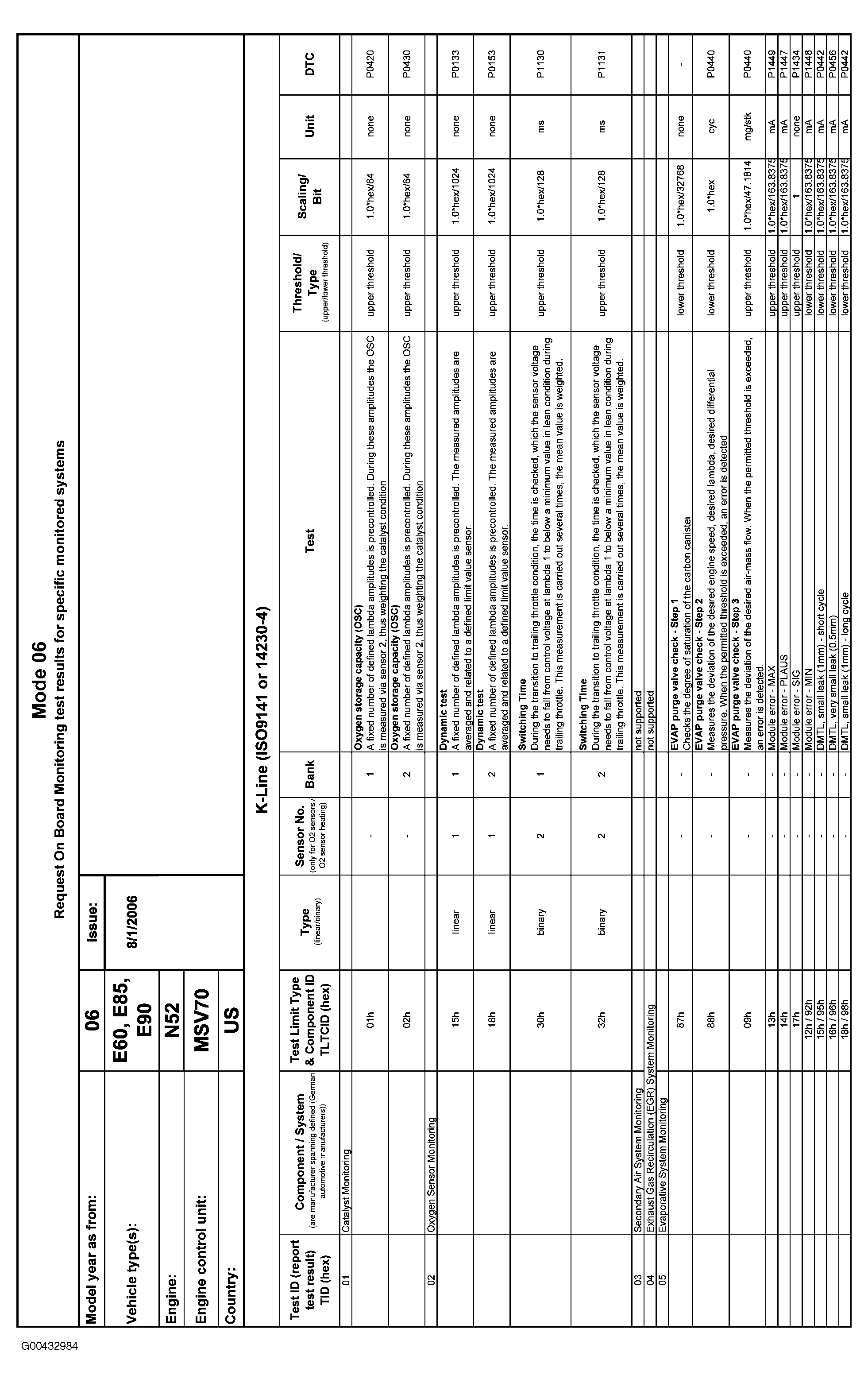

Fig 2: Mode 06 Data (2 Of 2)
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
