41 00... Stamping Vehicle Identification Number

NOTE: If the stamped vehicle identification number is removed during repair work, it must be stamped in again. Read and comply with GENERAL INFORMATION .

Necessary preliminary tasks:

Remove FRONT RIGHT SPRING STRUT

Special tool kit 41 1 090 for stamping vehicle identification number consists of:

Guide plate 41 1 091

Counter-plate 41 1 092

See BODY - SPECIAL TOOLS

Fig 1: Identifying Counter-Plate (41 1 092) And Guide Plate (41 1 091)

Courtesy of BMW OF NORTH AMERICA, INC.

Position counter-plate 41 1 092 at bottom on spring strut support plate.

Position guide plate 41 1 091 at top on spring strut support plate and secure.

IMPORTANT: Do not damage the spring support in the marked areas when positioning the guide plate.

Fig 2: Positioning Guide Plate (41 1 091)

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The illustration is a schematic representation and is to be applied to the relevant vehicle type.

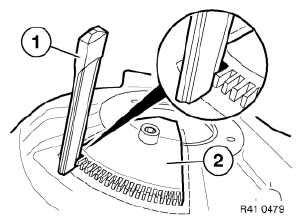

Insert punch numbers 41 0 000 (1) individually into guide plate (2) and stamp vehicle identification number.

Fig 3: Identifying Punch Numbers (41 0 000) And Guide Plate

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: In the event of component or body replacement by the workshops/garages, clearly delimit the vehicle identification number at front and rear by stamping a "+" in place of the BMW emblem.
Note national regulations.
