Consumer Shutdown

Power outputs are made available by the KBM 2 for consumer shutdown.

• VA 1 (Output 1):
  • Reading lights
  • Vanity lights
  • Boot
• IB 2 (Output 2):
  • Glovebox light

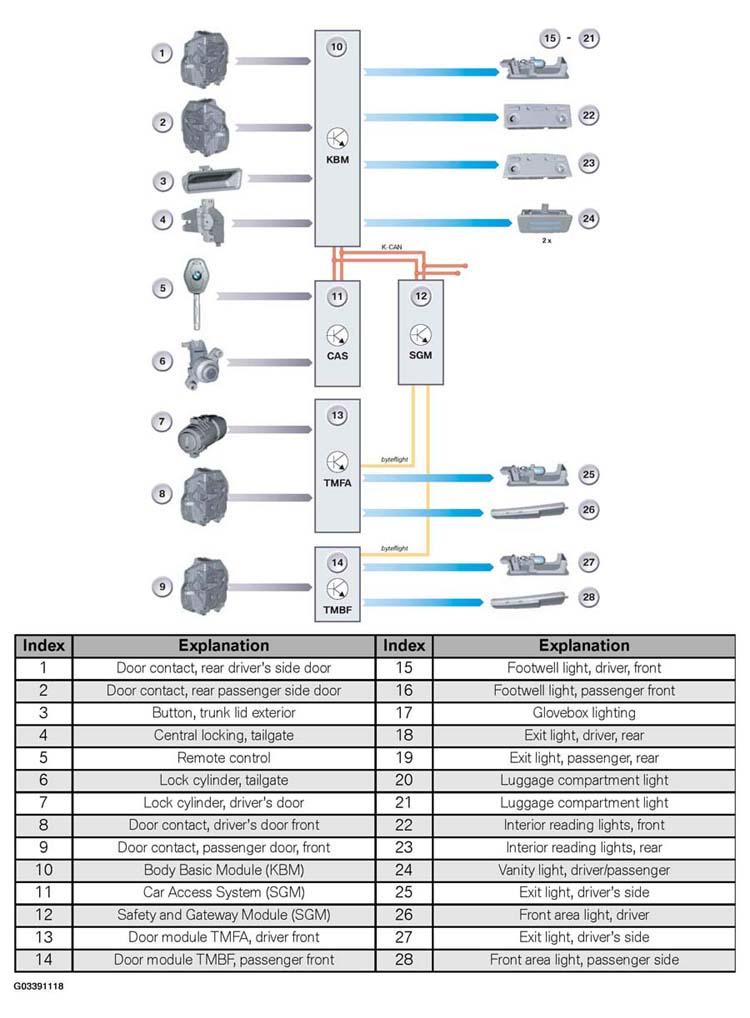

Fig 1: System Overview Interior Lighting Inputs/Outputs

Courtesy of BMW OF NORTH AMERICA, INC.
