TEST CABLE CONVERSION

TECHNICAL SERVICE BULLETIN

Reference Number(s): SI B 04 17 07, Date of Issue: August, 2007

BMW:	NA
GROUP:	04 - Tools and Equipment

SUBJECT

Test Cable Conversion

SITUATION

Distribution of the following tools will not be through the Automatic Tool Shipment Program.

4 Pin adapter cable

Order number 83 30 0 494 877

Cartool 612 350

This test cable was originally sent out under the Automatic Tool Shipment program (SI B04 12 05 ). It is used to perform measurements on the roof function center FZD for the E90. By performing the simple modification in this SI, the test cable may be used for future modules.

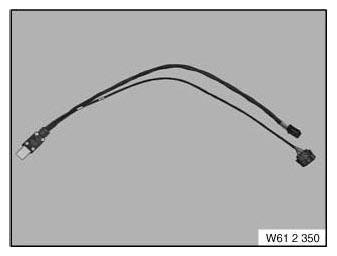

Fig 1: 4 Pin Adapter Cable

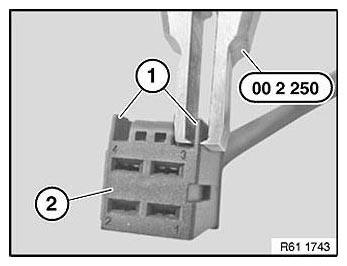

Use a suitable pair of cutting pliers to remove both tabs pictured (1) from connector (2).

The pictured pliers are not available through BMW.

Fig 2: Removing Tabs From Connector Using Cutting Pliers

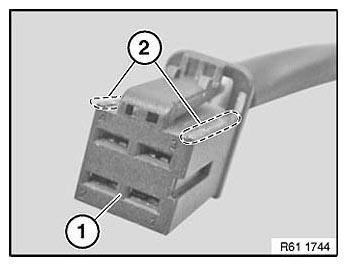

Remove any rough surface (2) using a fine file.

Fig 3: Connector With Tabs Removed

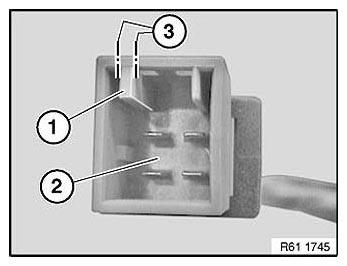

Remove the tab (1) on the male end connector (2). The two lines (3) show where the connector must be cut back through the housing.

Fig 4: Tab On Male End Connector

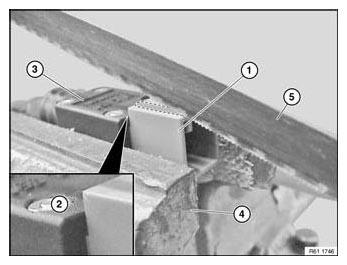

Do not damage the pins during removal. The blue plastic housing (1) protrudes 2 mm (2) over the black plastic housing (3). This allows the saw (5) to make a clean cut (dotted lines).

Fig 5: Removing Tab From Male End Connector

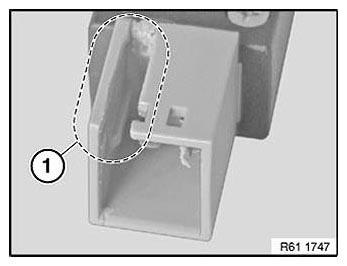

Remove any rough surface (1) using a fine file.

Fig 6: Male End Connector With Tab Removed

Refer to Parts Information bulletin 01 01 95 for tool warranty details.
