Revised Bus Structure

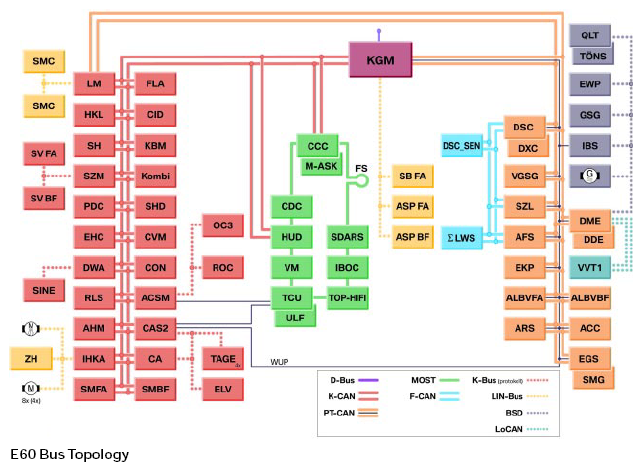

The following bus overview provides you with an overview of the vehicle electrical system structure and the integration of Advanced Safety and Crash Management in the K-CAN.
Notice the byteflight
bus has been eliminated.
Courtesy of BMW OF NORTH AMERICA, INC.
