32.... Overview of steering

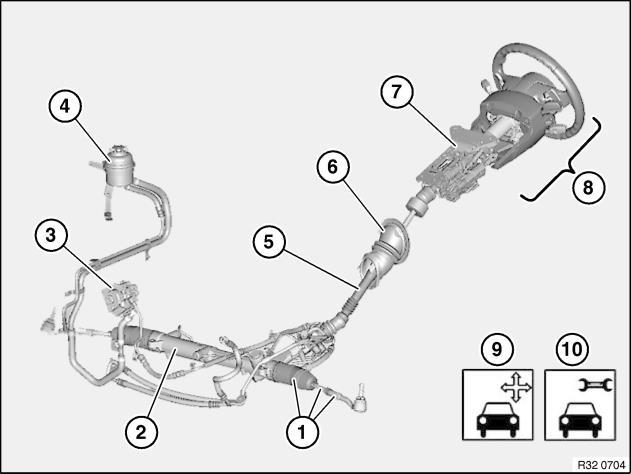

Fig 1: Identifying Steering Components (Except M Series)

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 2: Identifying Steering Components (M Series)

Courtesy of BMW OF NORTH AMERICA, INC.

1. Tie rod end / tie rod / gaiter
2. Power steering gear
3. Vane pump
4. Oil container
5. Steering spindle lower section
6. Sleeve
7. Steering column / electronic steering column lock
8. Overview of steering wheel/casing components
