Electronic Systems - Overview
›
Electronic Systems
›
Audio Systems
›
HiFi Amplifier
›
HiFi System Schematic
HiFi System Schematic

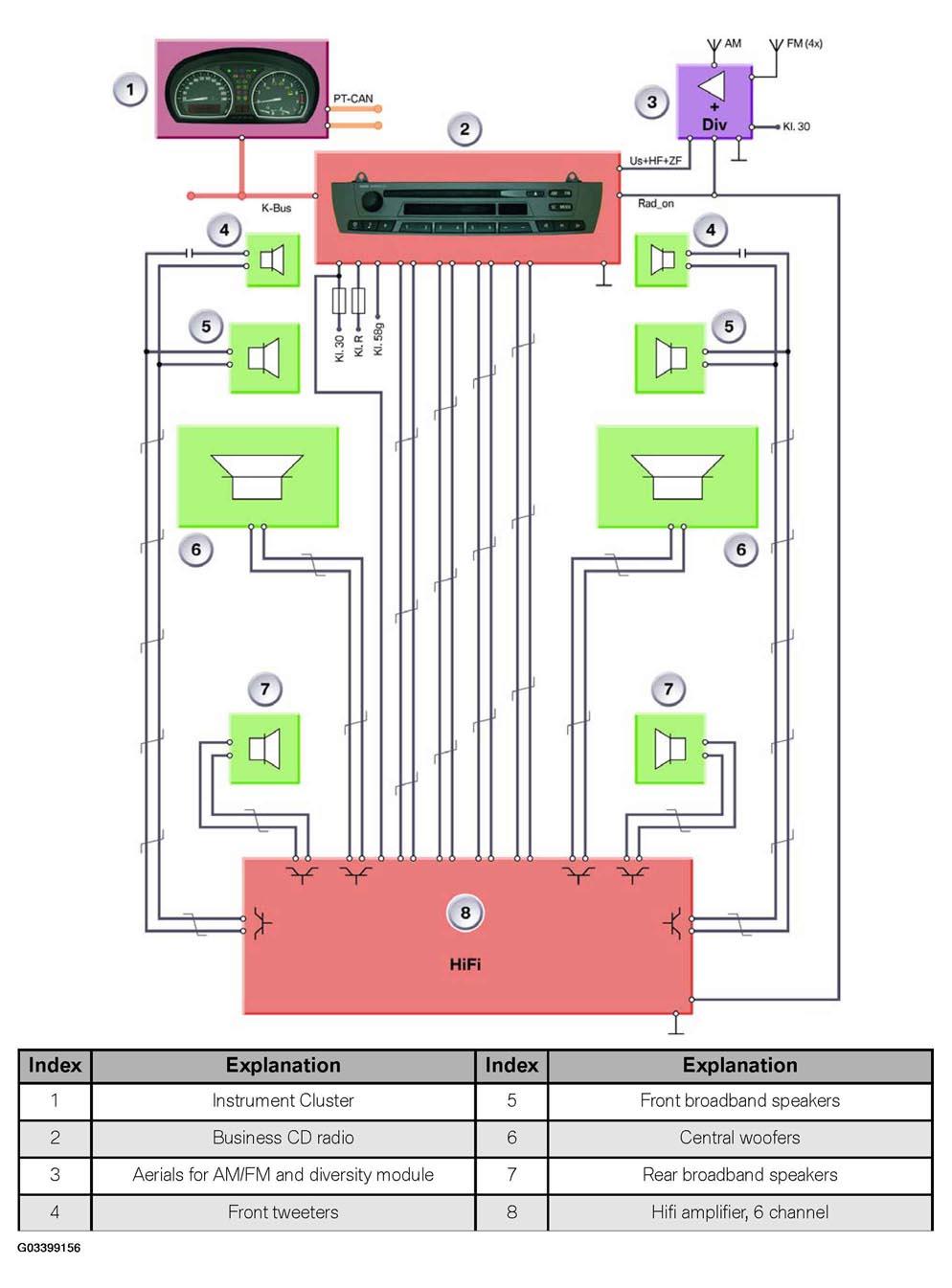

Fig 1: Identifying HiFi System Schematic
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
