Indicator And Warning Lamps: Notes

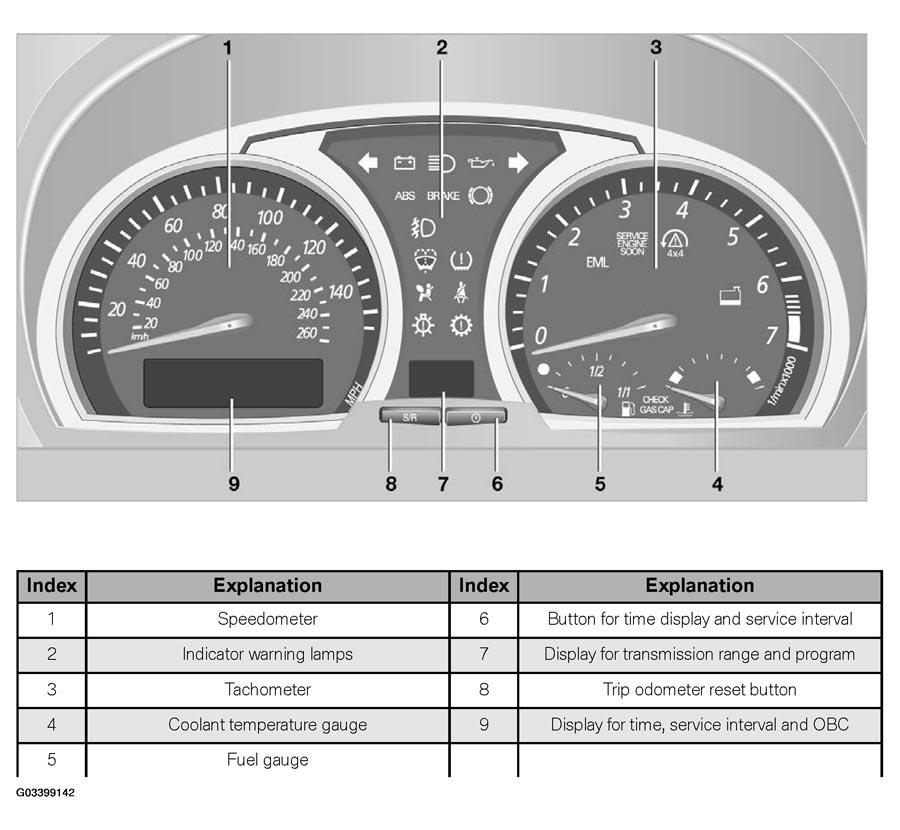

The indicator and warning lamps are activated by the processor in the instrument cluster. Important indicator and warning lamps are activated in the Predrive Check with terminal 15 "ON". The indicator lamps and warning symbols are illuminated by permanently wired-in LEDs (replacement of LEDs not possible).
