Electrical Component Locator
›
Circuit Protection Devices
Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
Component
Location
Fuse Box (A400)
Rear luggage compartment. See
Figure
.

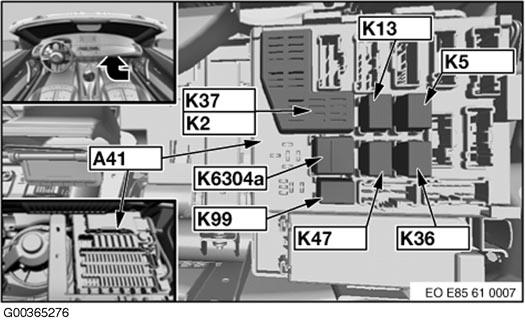

Power Distribution (A41)
Right side of dash. See
Figure
.
