DSC Sensor

The DSC sensor on vehicles equipped with active steering utilizes 2 yaw rate sensor elements to transmit redundant signals capturing the rate of yaw (rotation about the vertical axis) and lateral acceleration to the AFS module via the chassis CAN (F-CAN)

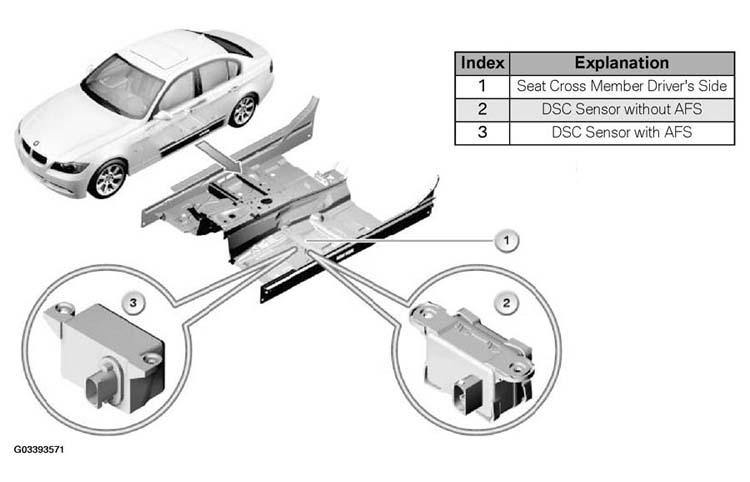

Fig 1: Identifying DSC Sensors
G03393571Courtesy of BMW OF NORTH AMERICA, INC.
