Hydraulic Line Tool (04 02 07)

Publication date: 2007-01-30
Reference number: 04 02 07

HYDRAULIC LINE TOOL

TECHNICAL SERVICE BULLETIN

Reference Number(s): SI B 04 02 07, Date of Issue: January 30, 2007

BMW:	E70 with Sport Package; N54 Engine
GROUP:	Tools and Equipment

SUBJECT

Hydraulic Line Tool

SITUATION

Distribution of the following tool will be through the Automatic Tool Shipment Program. Additional tools may be purchased through your PDC.

Hydraulic Line Tool

Order PN 83 30 0 495 908

Cartool PN 371 150

Used to R & R the hydraulic lines on the E70 Dynamic Drive (Sport Package) and the N54 fuel injector lines.

Refer to Repair Manual sections 13 53 192 (N54) and 37 20 001 (E70).

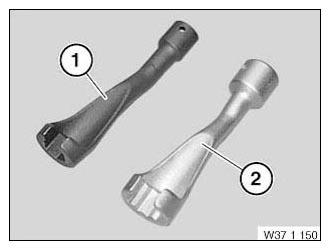

Fig 1: Hydraulic Line Tool

Distribution of the following tool will not be through the Automatic Tool Shipment Program. Tools may be purchased through your PDC.

AC Sprayer Wand

Order PN 83 30 0 495 534

Cartool PN 641 300

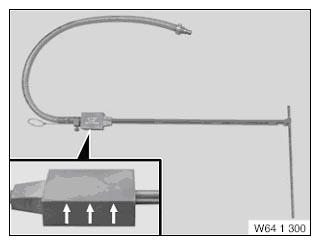

Fig 2: AC Sprayer Wand

Used in conjunction with AC disinfectant sprayer (SI B04 03 02 ) to clean and disinfect the AC system on vehicles that exhibit a musty odor. Refer to Repair Manual section 64 51 001.

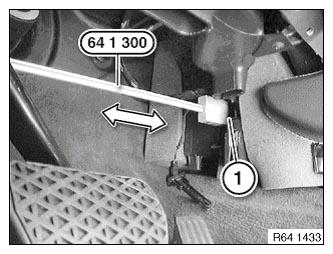

Fig 3: AC Sprayer Wand Usage
