Instrument Cluster: Notes

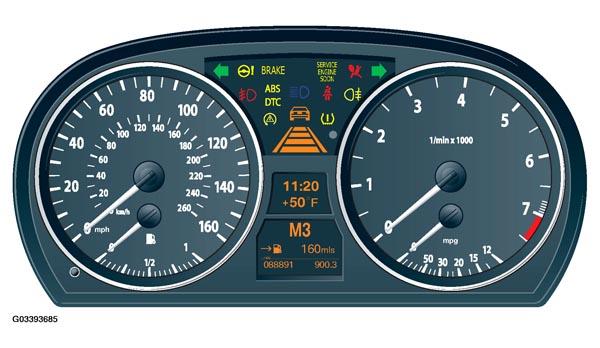

The new BMW 3 Series is equipped with an instrument cluster featuring analog instruments for:

• Speed
• Engine speed
• Economy control and
• Fuel level.

Two large pointer instruments show the road speed and engine speed. Two smaller pointer instruments display fuel level and current fuel consumption.

All of the indicator lamps are located in the center at the top between the two large instrument dials.

The liquid crystal display is located in the center between the two large pointer instruments.

A classic two-dial design draws attention to both instruments. Each finished unobtrusively with two trim rings in pearl-finish chrome.

The instrument cluster on the BMW 3 Series has no gateway function. Only the outside temperature, the information from the steering column switch cluster, and footwell module are shown directly in the display.
