Wiper Motor

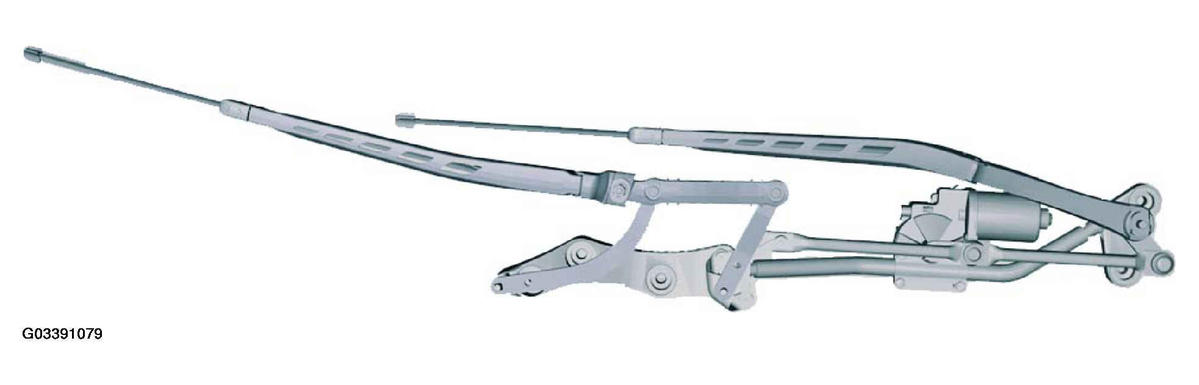

The wiper system is a twin-arm synchronous system with reciprocating action (four-bar linkage). The motor is a rotary motor without an electronic module and is controlled by KBM via a double relay.
The wiper motor's end position (off position) is detected by a reset contact integrated in the wiper motor. The crank is permanently connected to the wiper motor.
