61 13 ... In-Line Plugs, 4-, 10-Pin, System Elo

Pull connector (1) (slide) off contact carrier (2).

Fig 1: Identifying Connector And Contact Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

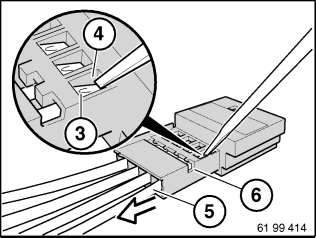

Hold down arrester hook (3) of defective contact and pull cable and contact up to secondary lock (6).

Fig 2: Identifying Arrester Hook And Secondary Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Hold down arrester hook once again in secondary lock and pull cable and contact completely out of contact carrier.

Fig 3: Pulling Cable And Contact Out From Secondary Lock

Courtesy of BMW OF NORTH AMERICA, INC.
