11 14 ... Overview of Housing Cover (N73)

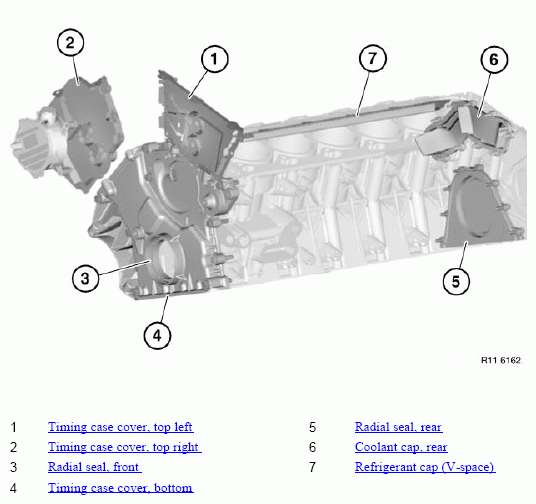

Fig 1: Identifying Housing Cover Components Location

Courtesy of BMW OF NORTH AMERICA, INC.

1. Timing case cover, top left. See 11 14 080 Removing and Installing Top Left Timing Case Cover (N73)
2. Timing case cover, top right. See 11 14 085 Removing and Installing Top Right Timing Case Cover (N73)
3. Radial seal, front. See 11 14 141 Replacing Radial Seal In Lower Timing Case Cover (N73)
4. Timing case cover, bottom. See 11 14 110 Removing and Installing Lower Timing Case Cover (N73)
5. Radial seal, rear. See 11 14 151 Replacing Crankshaft Radial Seal (N73)
6. Coolant cap, rear. See 11 14 250 Removing and Installing/Replacing Rear Coolant Cap (N73)
7. Refrigerant cap (V-space). See 11 14 110 Removing and Installing Lower Timing Case Cover (N73)
