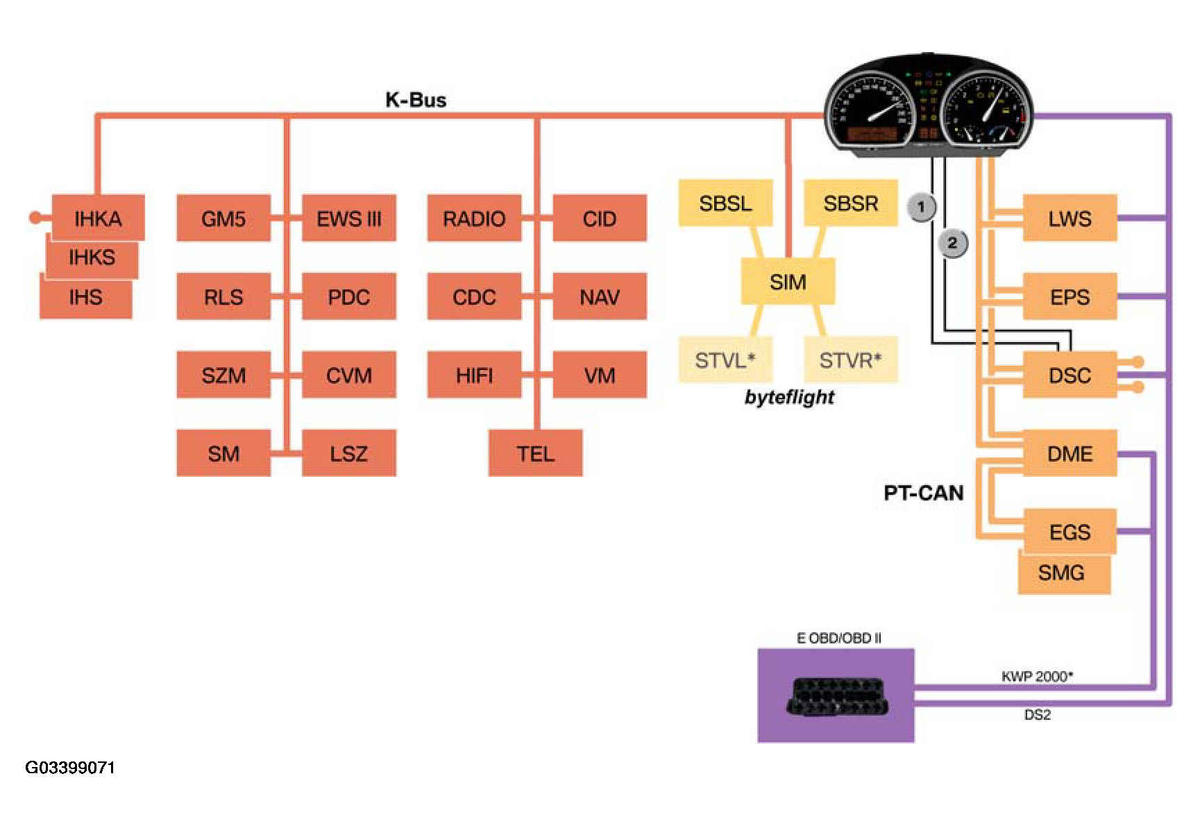

Bus Network
The instrument cluster is the central gateway (interface) for the bus network. The bus systems PT-CAN Bus, K-Bus and diagnosis bus and the byteflight are interconnected in the instrument cluster.
The byteflight is connected via the Safety and Information Module SIM (= gateway) to the K-Bus.
