51 00.. Overview of front door
51 00.. Overview of front door

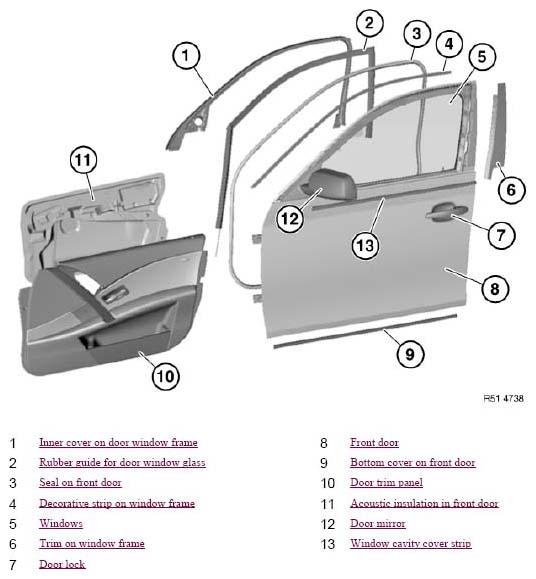

Fig 1: Identifying Front Door Components
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
