61 35 950 Removing And Installing (Replacing) Control Unit For Comfort Access System
IMPORTANT:
Read and comply with notes on protection against electrostatic damage (ESD protection)
.
Necessary preliminary tasks:
- Remove right luggage compartment wheel arch trim . See 51 47 161 REMOVING AND INSTALLING/REPLACING RIGHT LUGGAGE COMPARTMENT WHEEL ARCH TRIM .

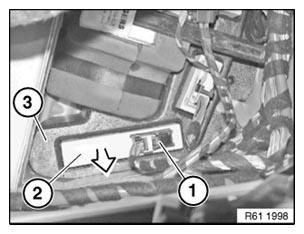

Disconnect plug connection (1).
Pull control unit for comfort access system (2) in direction of arrow out of device mount (3).
Replacement:
Carry out vehicle programming/coding .
