0309 Release tool

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

0495391 610309 Release tool MP

NOTE: (Release tool for pin-end round contact (D=1.5) manufactured by Kostal) Replaces from 09/2005 special tool 61 1 139 [released]

Storage Location: M22 x 205

SI number: 02 05 05 (217)

Consisting of:

10 = 0495393 Holding sleeve

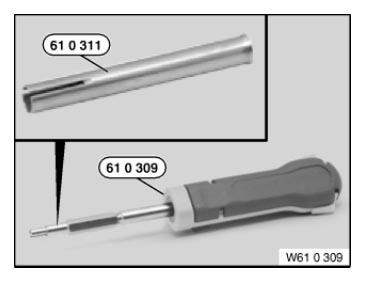

Fig 1: Identifying Release Tool (0495391)

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: (Replacement sleeve for special tool 61 0 309) Replaces from 09/2005 special tool 61 1 154 [released]
