FM and AM Station List

A double tuner module (see item 1) is installed in the CIC for the FM/AM range.

While one tuner in the network receives the required station and outputs the music signal, the other tuner works in the background searching the station landscape for additional signals and shows them on the display. ("All stations" menu item).

This function in the FM range is already known from the CCC and is now available in the AM range.

The third module in the tuner network enables expansion of the FM-TMC (Traffic Message Channel) functions. The FM/AM double tuner module and the FM-TMC module combine to form the triple tuner.

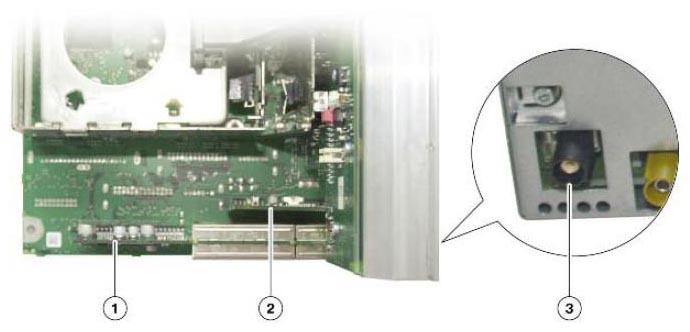

Fig 1: Identifying FM Tuner Module Component Location In CIC

Courtesy of BMW OF NORTH AMERICA, INC.
